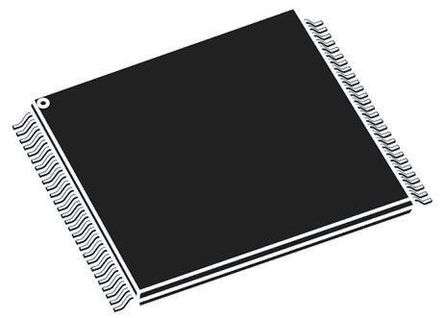

MICRON JS28F640P33BF70A

Manufacturer No:

JS28F640P33BF70A

Manufacturer:

MICRON

Package:

56-TFSOP (0.724, 18.40mm Width)

Description:

2.5/3.3V V 56 Pin Memory IC JS28F640 64 Mb kb 18.6mm mm 28mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

JS28F640P33BF70A information

MICRON JS28F640P33BF70A technical specifications, attributes, parameters and parts with similar specifications to MICRON JS28F640P33BF70A.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
56-TFSOP (0.724, 18.40mm Width)

Surface Mount
YES

Number of Pins
56

Operating Temperature
-40°C~85°C TC

Packaging
Tray

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
3A991.B.1.A

Terminal Finish
MATTE TIN

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
2.3V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
JS28F640

Power Supplies
2.5/3.3V

Voltage
2.3V

Interface
Parallel, Serial

Memory Size
64Mb 4M x 16

Nominal Supply Current
28mA

Memory Type
Non-Volatile

Clock Frequency
40MHz

Memory Format
FLASH

Memory Interface
Parallel

Organization
4MX16

Write Cycle Time - Word, Page
70ns

Address Bus Width
22b

Density
64 Mb

Standby Current-Max
0.002A

Access Time (Max)
70 ns

Sync/Async
Asynchronous

Word Size
16b

Data Polling
NO

Toggle Bit
NO

Number of Sectors/Size
463

Sector Size
16K64K

Page Size
8words

Boot Block
BOTTOM

Download datasheets and manufacturer documentation for MICRON JS28F640P33BF70A.

Datasheets:

micron-js28f640p33bf70a-datasheets-7240.pdf

JS28F640P33BF70A Overview

In terms of its memory type, it can be classified as Non-Volatile. The case comes in Tray size. The case is embedded in 56-TFSOP (0.724, 18.40mm Width). Memory size on the chip is 64Mb 4M x 16. This device uses takes advantage of the FLASH format. The device's extended operating temperature range of -40°C~85°C TC makes it ideal for many demanding applications. The device is capable of handling a supply voltage of 2.3V~3.6V. The recommended mounting type for this device is Surface Mount. On the chip, there are 56 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3V is required for the operation of this memory device. There is a clock frequency rotation of the memory within a 40MHz range. It is common to select similar parts by referring to the device's base part number, JS28F640. An 56-pin package is used to package this memory device. A memory device like this has 56 pins, indicating that there are 56 memory locations on the device. As far as its nominal supply current is concerned, this memory component carries a rating of 28mA. This memory chip requires only 2.5/3.3V of power. A total of 463 specific sizes of divisions are present in this memory. When ic memory chip comes to voltage, the chip works well under an operating voltage of 2.3V volts.

JS28F640P33BF70A Features

Package / Case: 56-TFSOP (0.724, 18.40mm Width)
56 Pins

JS28F640P33BF70A Applications

There are a lot of Micron Technology Inc.
JS28F640P33BF70A Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
