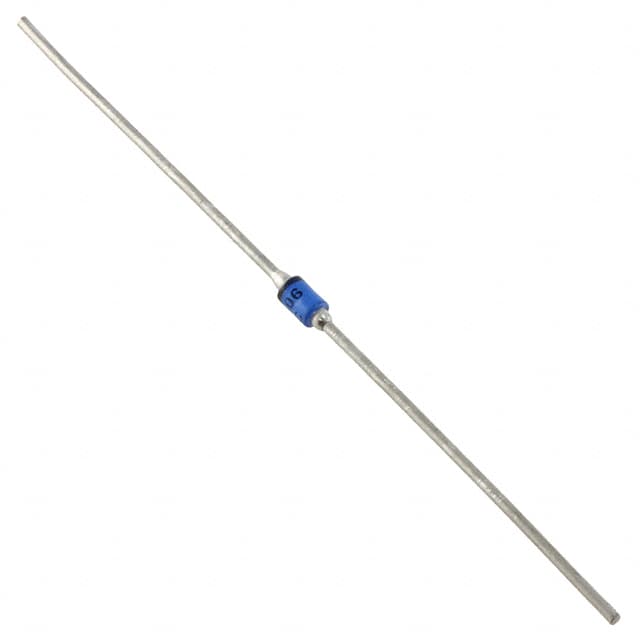

Semtech JANTX1N6081
Semtech JANTX1N6081

Semtech JANTX1N6081

Manufacturer No:

JANTX1N6081

Manufacturer:

Semtech

Package:

Description:

Hi-Reliability, Diode Schottky, Rectifier, Military

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

JANTX1N6081 information

Semtech JANTX1N6081 technical specifications, attributes, parameters and parts with similar specifications to Semtech JANTX1N6081.

  • Type
  • Parameter
  • Category
  • Discrete Semiconductor Products
  • Manufacturer
  • Microchip Technology
  • Packaging
  • Bulk
  • Part Status
  • Discontinued at Digi-Key
  • Manufacturer Lead Time
  • 24 Weeks
  • Capacitance @ Vr, F
  • -
  • Current - Average Rectified (Io)
  • 2A
  • Current - Reverse Leakage @ Vr
  • 5 µA @ 150 V
  • Grade
  • Military
  • Mounting Type
  • Through Hole
  • Operating Temperature - Junction
  • -65°C ~ 155°C
  • Package / Case
  • A, Axial
  • Qualification
  • MIL-PRF-19500/503
  • Reverse Recovery Time (trr)
  • 30 ns
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Supplier Device Package
  • A-PAK
  • Technology
  • Standard
  • Voltage - DC Reverse (Vr) (Max)
  • 150 V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.5 V @ 37.7 A
  • ExportControlClassNumber
  • EAR99
  • HtsusCode
  • 8541.10.0080
  • MoistureSensitivityLevel
  • 1 (Unlimited)
  • ReachStatus
  • REACH Unaffected
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Semtech JANTX1N6081.

Data Sheets:

This “Ultrafast Recovery” rectifier diode series is military qualified to MIL-PRF19500/503 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 3, 6, and 12 Amp rated rectifiers (TL =70ºC) in different package sizes for working peak reverse voltages from 50 to 150 volts are hermetically sealed with voidless-glass construction using an internal “Category I” metallurgical bond. These devices are also available in surface mount MELF package configurations by adding a “US” suffix (see separate data sheet for 1N6073US thru 1N6081US). microchip also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time speed requirements including standard, fast and ultrafast device types in both through-hole and surface mount packages.

  • Popular JEDEC registered 1N6073 to 1N6081 series
  • Voidless hermetically sealed glass package
  • Extremely robust construction
  • Triple-layer passivation
  • Internal “Category I” Metallurgical bonds
  • JAN, JANTX, and JANTXV available for 1N6074 and 1N6075 per MIL-PRF-19500/503
  • Further options for screening in accordance with MILPRF-19500 for JAN, JANTX, JANTXV, or JANS by using a MQ, MX, MV or SP prefix respectively e
  • g
  • MX6076, MV6079, SP6081, etc
  • Surface mount equivalents also available in a square end-cap MELF configuration with “US” suffix
  • Ultrafast recovery rectifier series 50 to 150V
  • Military and other high-reliability applications
  • Switching power supplies or other applications requiring extremely fast switching & low forward loss
  • High forward surge current capability
  • Low thermal resistance
  • Controlled avalanche with peak reverse power capability
  • Inherently radiation hard as described in microchip MicroNote 050
