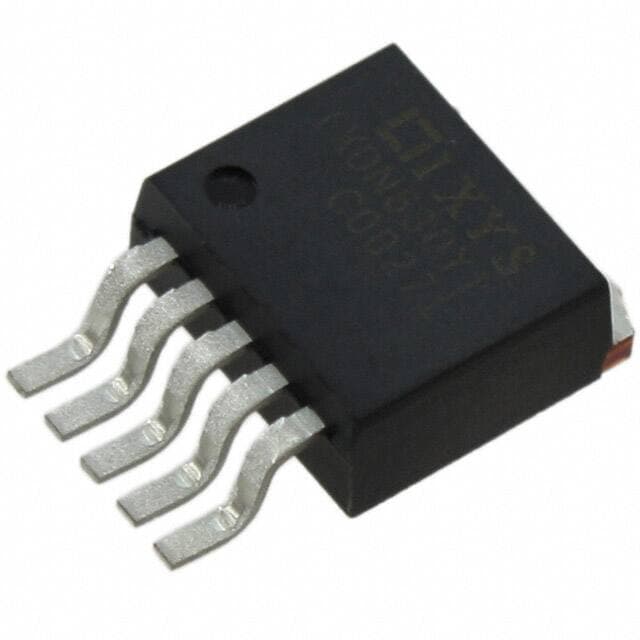

LITTELFUSE IXDN630YI

Manufacturer No:

IXDN630YI

Manufacturer:

LITTELFUSE

Package:

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Description:

Surface Mount Tube Active Gate Drivers ICs Non-Inverting 1 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXDN630YI information

LITTELFUSE IXDN630YI technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXDN630YI.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Supplier Device Package
TO-263-5

Weight
1.59999g

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Voltage - Supply
12.5V~35V

Number of Outputs
1

Output Voltage
12.5V

Max Output Current
30A

Number of Channels
1

Max Supply Voltage
35V

Min Supply Voltage
10V

Operating Supply Current
10?A

Output Current
30A

Propagation Delay
65 ns

Input Type
Non-Inverting

Rise Time
20ns

Fall Time (Typ)
18 ns

Turn-Off Delay Time
100 ns

Rise / Fall Time (Typ)
11ns 11ns

Channel Type
Single

Number of Drivers
1

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)
30A 30A

Logic Voltage - VIL, VIH
0.8V 3.5V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE IXDN630YI.

IXDN630YI Overview

In order to increase flexibility, the package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA is used.There is a package in the form of Tube.Configuration is supported by 1 drivers.Surface Mount is mounted in the way of the device.Gate drivers can demonstrate Gate driverss superiorGate driversy wGate driversh a 12.5V~35V supply voltage.This device is designed with a IGBT, N-Channel, P-Channel MOSFET gate type.This device is allowed to operate in a temperature range of -55°C~150°C TJ.This program uses the input type of Non-Inverting.In this case, Surface Mount indicates how the device is to be mounted.In the maximum case, the output current can be 30A volts.The basis of the model has 1 outputs integrated.The device is capable of delivering a current of 30A.125°C is the maximum operating temperature that can be tolerated.Temperatures below -40°C are allowable as a minimum.For operation, it requires a voltage of 35V.This device operates at 10V as the minimum supply voltage.A voltage of 12.5V is output by this device.A voltage of 10?A is used as the supply voltage.Operation of the device is limited to 1 channels.
