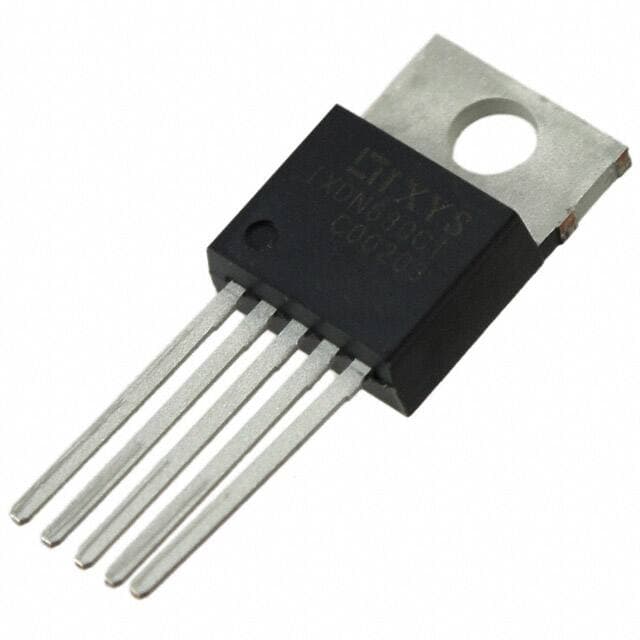

LITTELFUSE IXDN630CI

Manufacturer No:

IXDN630CI

Manufacturer:

LITTELFUSE

Package:

TO-220-5

Description:

Through Hole Tube Active Gate Drivers ICs Non-Inverting 1 TO-220-5 Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXDN630CI information

LITTELFUSE IXDN630CI technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXDN630CI.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-5

Supplier Device Package
TO-220-5

Weight
3.000003g

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Voltage - Supply
12.5V~35V

Number of Outputs
1

Output Voltage
12.5V

Max Output Current
30A

Number of Channels
1

Max Supply Voltage
35V

Min Supply Voltage
10V

Operating Supply Current
10?A

Output Current
30A

Propagation Delay
65 ns

Input Type
Non-Inverting

Rise Time
20ns

Fall Time (Typ)
18 ns

Turn-Off Delay Time
100 ns

Rise / Fall Time (Typ)
11ns 11ns

Channel Type
Single

Number of Drivers
1

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)
30A 30A

Logic Voltage - VIL, VIH
0.8V 3.5V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE IXDN630CI.

IXDN630CI Overview

Its TO-220-5 package provides greater flexibility.A packaging method of Tube is indicated.The configuration is supported by 1 drivers.It's mounted on the way to Through Hole.In the absence of a 12.5V~35V supply voltage, it can demonstrate its superiority.A gate type of IGBT, N-Channel, P-Channel MOSFET is used in its design.There is a temperature range for this device of -55°C~150°C TJ.Non-Inverting is used as the input type in this program.You mount it with Through Hole.As a maximum, there is 30A limit to the output current.The basis of this model has 1 outputs integrated.The output current supported by the device is 30A.Mosfet gate drivers is permissible to set the operating temperature to 125°C.Mosfet gate drivers is permissible to operate at a minimum temperature of -40°C.35V is its maximum operating voltage.In order for the device to function, the supply voltage must be set to 10V.In this case, it produces a voltage of 12.5V.The supply voltage of this device is 10?A and it operates with that voltage.Mosfet driver ic has a configuration of 1 channels.

IXDN630CI Features

Embedded in the Tube package
1 drivers
Employing a gate type of IGBT, N-Channel, P-Channel MOSFET

IXDN630CI Applications

There are a lot of IXYS Integrated Circuits Division
IXDN630CI gate drivers applications.

Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
