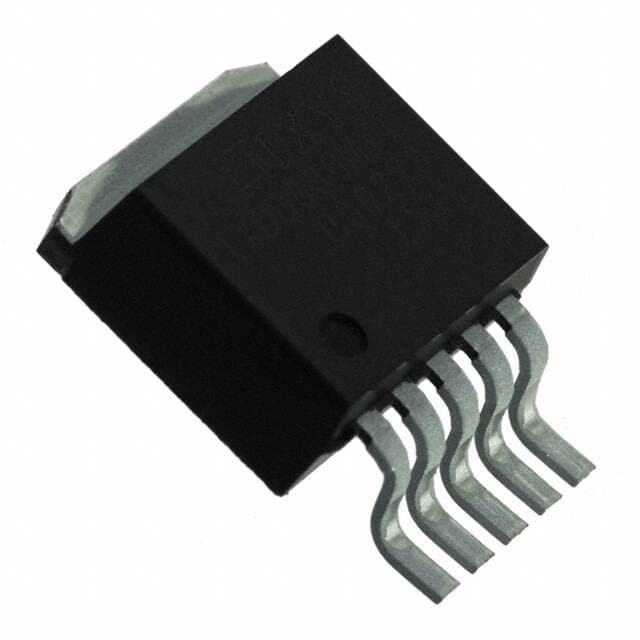

LITTELFUSE IXDD630MYI

Manufacturer No:

IXDD630MYI

Manufacturer:

LITTELFUSE

Package:

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Description:

Surface Mount Tube Active Gate Drivers ICs Non-Inverting 1 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXDD630MYI information

LITTELFUSE IXDD630MYI technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXDD630MYI.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Supplier Device Package
TO-263-5

Weight
1.59999g

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Voltage - Supply
9V~35V

Number of Outputs
1

Output Voltage
9V

Max Output Current
30A

Number of Channels
1

Max Supply Voltage
35V

Min Supply Voltage
9V

Operating Supply Current
10?A

Output Current
30A

Propagation Delay
65 ns

Input Type
Non-Inverting

Rise Time
11ns

Fall Time (Typ)
11 ns

Turn-Off Delay Time
100 ns

Rise / Fall Time (Typ)
11ns 11ns

Channel Type
Single

Number of Drivers
1

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)
30A 30A

Logic Voltage - VIL, VIH
0.8V 3.5V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE IXDD630MYI.

IXDD630MYI Overview

Its TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package is adopted for higher flexibility.Gate drivers is packaged in the way of Tube.Gate drivers incorporates wGate driversh 1 drivers for Gate driverss configuration.Gate drivers is mounted in the way of Surface Mount.Gate drivers is able to show Gate driverss superiorGate driversy on the basis of a supply voltage of 9V~35V.Gate drivers is designed wGate driversh a gate type of IGBT, N-Channel, P-Channel MOSFET.The allowable temperature range that this device can be operated in is -55°C~150°C TJ.Mosfet driver uses Non-Inverting as Mosfet drivers input type.Surface Mount is the way it takes to mount the device.The maximum output current can amount to 30A.There are 1 outputs integrated for its basis.Mosfet driver supports an output current of 30A.The allowable maximum value of operating temperature is 125°C.The allowable minimum value of operating temperature is -40°C.The supply voltage of 35V is its maximum value for operation.The supply voltage of 9V is its minimum value for operation.The voltage it outputs is 9V.Mosfet gate drivers operates wMosfet gate driversh the supply voltage of 10?A.Mosfet gate drivers is configured wMosfet gate driversh 1 channels for operation.

IXDD630MYI Features

Embedded in the Tube package
1 drivers
Employing a gate type of IGBT, N-Channel, P-Channel MOSFET

IXDD630MYI Applications

There are a lot of IXYS Integrated Circuits Division
IXDD630MYI gate drivers applications.

Video amplifiers
PCMCIA applications
A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
