ST ISO8200B

Manufacturer No:

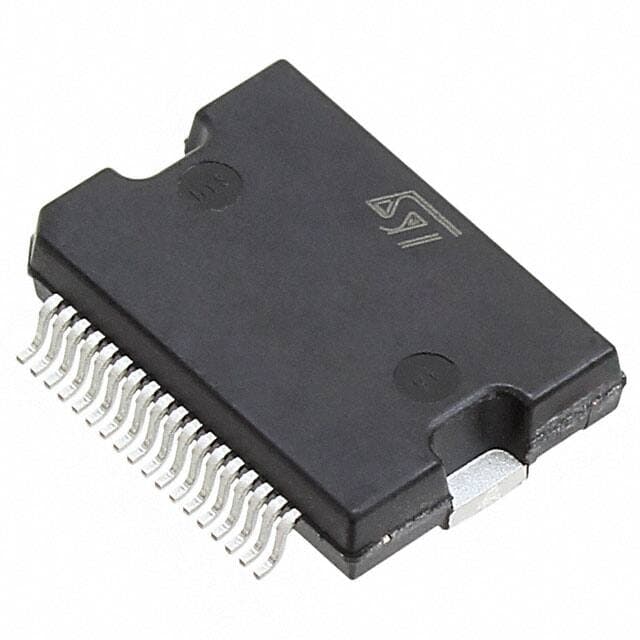

ISO8200B

Manufacturer:

Package:

SOP-36

Description:

Galvanic isolated octal high side smart power solid state relay

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISO8200B information

ST ISO8200B technical specifications, attributes, parameters and parts with similar specifications to ST ISO8200B.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
SOP-36

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
18 Weeks

Samacsys Manufacturer
STMicroelectronics

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

JESD-30 Code
R-PDSO-G36

JESD-609 Code
e3

Length
15.9 mm

Moisture Sensitivity Level
3

Number of Functions
1

Number of Terminals
36

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Output Current Flow Direction
SINK

Output Peak Current Limit-Nom
1.1 A

Package Body Material
PLASTIC/EPOXY

Package Code
HSSOP

Package Shape
RECTANGULAR

Peak Reflow Temperature (Cel)
245

Seated Height-Max
3.6 mm

Supply Voltage-Max
36 V

Supply Voltage-Min
10.5 V

Supply Voltage-Nom
24 V

Surface Mount
YES

Temperature Grade
AUTOMOTIVE

Terminal Finish
Matte Tin (Sn) - annealed

Terminal Form
GULL WING

Terminal Pitch
0.65 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
30

Turn-off Time
40 µs

Turn-on Time
22 µs

Width
11 mm

Download datasheets and manufacturer documentation for ST ISO8200B.

Datasheets:

en.DM00068084.pdf

ISO8200B Overview

As a result, it is packaged in the form of a Tube.This package is included in 36-BSSOP (0.433, 11.00mm Width) Exposed Pad.Mounting type Surface Mount is selected for the LED driving board.A Relay, Solenoid Driver switch type is owned by it.In order to guarantee reliable performance, the temperature should be set to -40°C~125°C TJ.It is equipped with Auto Restart, Galvanic Isolation, Status Flag features.It comes under the family of ISO82.A total of 36 terminations have been recorded.The operation is performed through the 36 pins.Currently, the lighting driver has a total of 1 functions.This operation requires the maximum output current to be decreased to 700mA.High efficiency is possible when the supply voltage is set to 24V.Surface Mount is mounted in the way.Currently, the LED driving board has 120mOhm resistance.As a result, the output current is set to 700mA.It is recommended to set the supply voltage to 45V for optimum efficiency.Input voltage is limited to 36V volts.There is a maximum supply voltage of 6.5VV that it is capable of handling.Alternatively, 3V volts can be used if needed.There are 8 drivers available for this part.
