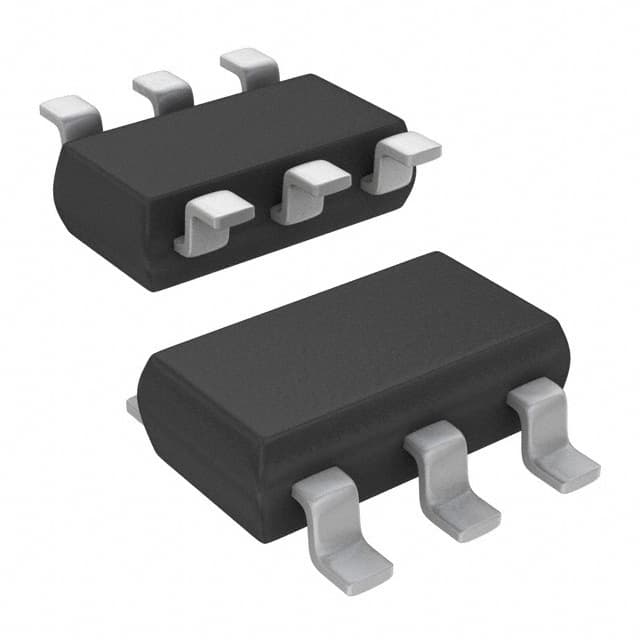

Renesas ISL97631IHTZ-T7A

Manufacturer No:

ISL97631IHTZ-T7A

Manufacturer:

Renesas

Package:

TSOT

Description:

0.95mm PMIC 1.8MHz TSOT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL97631IHTZ-T7A information

Renesas ISL97631IHTZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL97631IHTZ-T7A.

Type
Parameter

Mount
Surface Mount

Package / Case
TSOT

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.95mm

Frequency
1.8MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
6

Number of Outputs
1

Operating Supply Voltage
5.5V

Input Voltage-Nom
3V

Analog IC - Other Type
SWITCHING REGULATOR

Max Supply Current
1mA

Voltage - Output
27V

Input Voltage (Min)
2.7V

Topology
Boost

Control Mode
CURRENT-MODE

Output Current-Max
0.35A

Control Technique
PULSE WIDTH MODULATION

Number of Segments
6

Length
2.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL97631IHTZ-T7A.

Datasheets:

intersil-isl97631ihtzt7a-datasheets-6115.pdf

ISL97631IHTZ-T7A Overview

It saves board space with the TSOT package. For the design of these LED drivers, 1 outputs are used.As a result, it operates in accordance with the frequency of 1.8MHz.It operates using 6 terminations.In total, it includes 6 segments.Surface Mount is mounted on it.There is 27V voltage output from the device.In this device, there are 6 pins.It is possible to obtain a high efficiency with this device when the maximum supply current is less than 1mA.Operating temperatures should not exceed 85°C in order to ensure stable operation.Stable operation requires a temperature greater than -40°C.The power of systems depends on having 5.5V voltages inside.Operation of the device requires 3V volts to be applied to the circuit.When the input voltage is greater than or equal to 2.7V, the operation of this device is greatly simplified.It is important that the output current is not greater than 0.35A.SWITCHING REGULATOR Analog IC is used in this device.

ISL97631IHTZ-T7A Features

Available in the TSOT package
Frequency of 1.8MHz
Operating with the supply voltage of 5.5V

ISL97631IHTZ-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
ISL97631IHTZ-T7A LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
