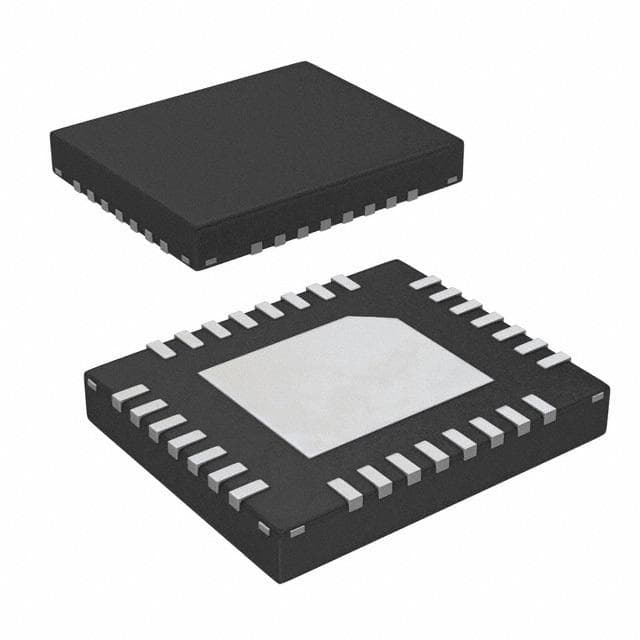

Renesas ISL95210IRZ-T

Manufacturer No:

ISL95210IRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

32 Terminals 32-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 800kHz 10A QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL95210IRZ-T information

Renesas ISL95210IRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL95210IRZ-T.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Additional Feature
ALSO HAS CONTROL TECHNIQUE OF PWM AND ALSO OPERATES IN VOLTAGE MOE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
AUTOMOTIVE

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
10A

Quiescent Current
400nA

Voltage - Output
2.16V

Input Voltage (Min)
3.3V

Control Mode
CURRENT-MODE

Frequency - Switching
800kHz

Input Voltage (Max)
5.5V

Control Technique
HYSTERETIC CURRENT MODE

Synchronous Rectifier
Yes

Switcher Configuration
BUCK

Length
6mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL95210IRZ-T.

Datasheets:

intersil-isl95210irzt-datasheets-0233.pdf

ISL95210IRZ-T Overview

There are 32 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. This harley voltage regulator is available in the QFN package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable output on its output pins. The switching frequency of this DC-DC switching regulator reaches 800kHz. The output current of 10A makes dc to dc voltage regulator feature maximum design flexibility. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 5V to meet the operation requirements. This voltage regulator is included in the Switching Regulator or Controllers subcategory. 32 pins are used for switching regulator operation. Voltage regulator consumes 400nA A of quiescent current without being affected by external factors. The ALSO HAS CONTROL TECHNIQUE OF PWM AND ALSO OPERATES IN VOLTAGE MOE feature adds to the efficiency and stability of this switching regulator. The high-limit maximum operating temperature 100°C allows harley voltage regulator stable operation. It operates with the minimum operating temperature of -40°C to ensure harley voltage regulator's reliability. DC DC switching regulator's input voltage with the maximal value of 5.5V can be permitted on the basis of a unique technique. The dc to dc voltage regulator's input voltage (Min) of 3.3V is provided. This DC-DC switching regulator is equipped with 32 pin count. DC DC switching regulator has 2.16V voltage-output capability.
