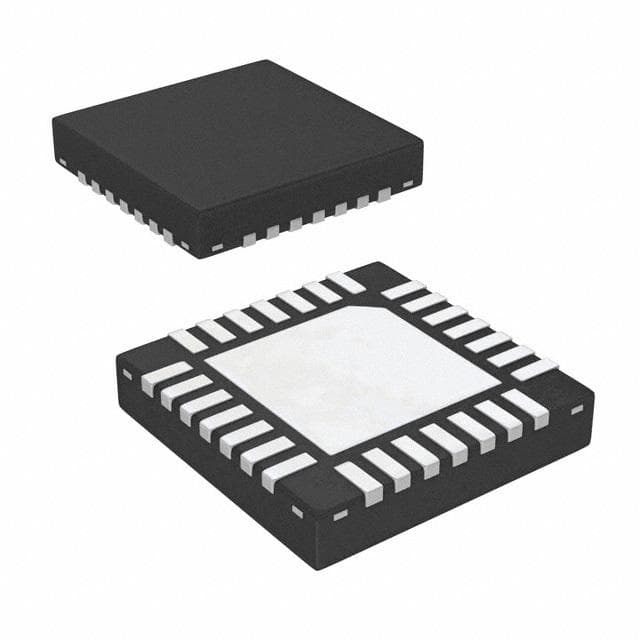

Renesas ISL9518HRTZ

Manufacturer No:

ISL9518HRTZ

Manufacturer:

Renesas

Package:

Description:

19V QUAD Battery Management ICs 19V 28 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9518HRTZ information

Renesas ISL9518HRTZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9518HRTZ.

Type
Parameter

Mount
Surface Mount

Number of Pins
28

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

Additional Feature
ALSO OPERATES AS LDO REGULATOR

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
19V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

Qualification Status
Not Qualified

Input Voltage-Nom
19V

Power Supplies
19V

Temperature Grade
OTHER

Analog IC - Other Type
SWITCHING REGULATOR

Input Voltage (Min)
8V

Control Mode
CURRENT-MODE

Input Voltage (Max)
26V

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
5mA

Switcher Configuration
BUCK

Switching Frequency-Max
440kHz

Length
4mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9518HRTZ.

ISL9518HRTZ Overview

Analog IC SWITCHING REGULATOR is used in this power IC. In total, it has 28 pins. For mounting, use Surface Mount. The Power Management Circuits family of electrical components includes this component. A value of -10°C is required to activate this power management IC. At temperatures below 100°C, it is recommended that it be used. Power comes from a 19V volt source. It is important to keep this battery management IC set to 19V at all times. It has 28 pins in total. With this power management IC, it is possible to discover ALSO OPERATES AS LDO REGULATOR. Supply current (Isup) must not exceed 5mA.

ISL9518HRTZ Features

with 28 Pins
operate supply voltage at the range of 19V
Output Voltage at the range of 5.1V

ISL9518HRTZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL9518HRTZ Battery Management ICs applications.

Trucks
Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
