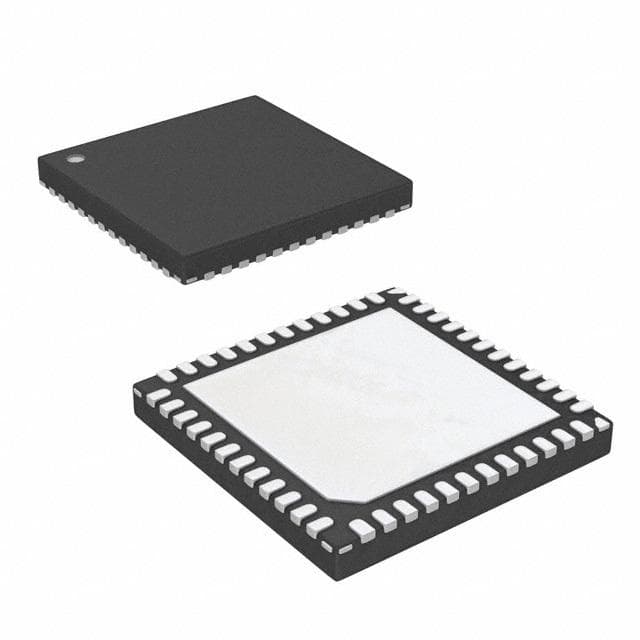

Renesas ISL9502AHRZ

Manufacturer No:

ISL9502AHRZ

Manufacturer:

Renesas

Package:

QFN

Description:

48 Terminals DC to DC converter IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9502AHRZ information

Renesas ISL9502AHRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9502AHRZ.

Type
Parameter

Package / Case
QFN

Surface Mount
YES

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Terminal Pitch
0.5mm

JESD-30 Code
S-PQCC-N48

Qualification Status
Not Qualified

Operating Temperature (Max)
100°C

Operating Temperature (Min)
-10°C

Temperature Grade
OTHER

Control Mode
VOLTAGE-MODE

Switching Frequency-Max
500kHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9502AHRZ.

Datasheets:

intersil-isl9502ahrz-datasheets-9155.pdf

ISL9502AHRZ Overview

With a QFN package, the switching controller is suitable for a wide range of applications. The switching converters's terminals (s) are designed at QUAD. An array of 48 terminations of dc switching. In particular, switching converter is a type of Switching Regulator or Controllers. This switching controller can switch at a frequency of 500kHz. The switching controller's ambient temperature limit is 100°C degrees. It is recommended that the bottom temperature of the dc to dc voltage regulator be -10°C.
