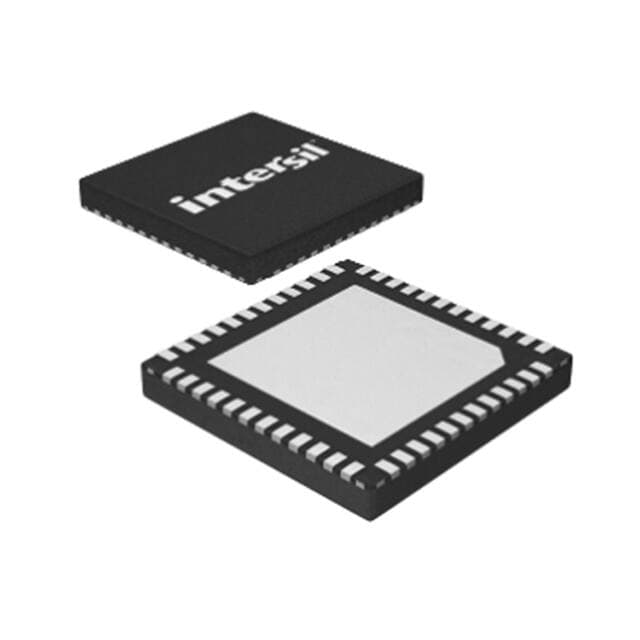

Renesas ISL94202IRTZ-T7A

Manufacturer No:

ISL94202IRTZ-T7A

Manufacturer:

Renesas

Package:

48-WFQFN Exposed Pad

Description:

-40°C~85°C TA 2 Channel QUAD Battery Management ICs 26.4V 3 ~ 8 Cell Multi-Chemistry 48-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL94202IRTZ-T7A information

Renesas ISL94202IRTZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL94202IRTZ-T7A.

Type
Parameter

Factory Lead Time
17 Weeks

Mounting Type
Surface Mount

Package / Case
48-WFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
26.4V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-PQCC-N48

Function
Battery Monitor

Supply Voltage-Max (Vsup)
36V

Supply Voltage-Min (Vsup)
4V

Number of Channels
2

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Adjustable Threshold
YES

Fault Protection
Over Current, Over/Under Voltage, Short Circuit

Battery Chemistry
Multi-Chemistry

Number of Cells
3 ~ 8

Length
6mm

Height Seated (Max)
0.8mm

Width
6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL94202IRTZ-T7A.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

ISL94202IRTZ-T7A Overview

The 48-WFQFN Exposed Pad package is appropriate for it. This power IC uses an analog IC called POWER SUPPLY MANAGEMENT CIRCUIT. Channels are available on 2. The smart tools battery is packaged in a Tape & Reel (TR) case. Surface Mount is mounted in the way of this electronic component. The Battery Monitor functions can be delivered by it. A temperature range of -40°C~85°C TA is optimal for the electric part to deliver its performance. This electronic component includes Multi-Chemistry in its battery chemistry. This battery management IC should always be set to 26.4V. 36V is the maximum supply voltage (Vsup). A voltage greater than 4V is required for Vsup (supply voltage).

ISL94202IRTZ-T7A Features

Available in 48-WFQFN Exposed Pad Package
Mounting Type: Surface Mount
Battery Chemistry : Multi-Chemistry
operate supply voltage at the range of 26.4V
Supply Voltage-Max (Vsup) : 36V

ISL94202IRTZ-T7A Applications

There are a lot of Renesas Electronics America Inc.
ISL94202IRTZ-T7A Battery Management ICs applications.

Electric cars
Trucks
Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
