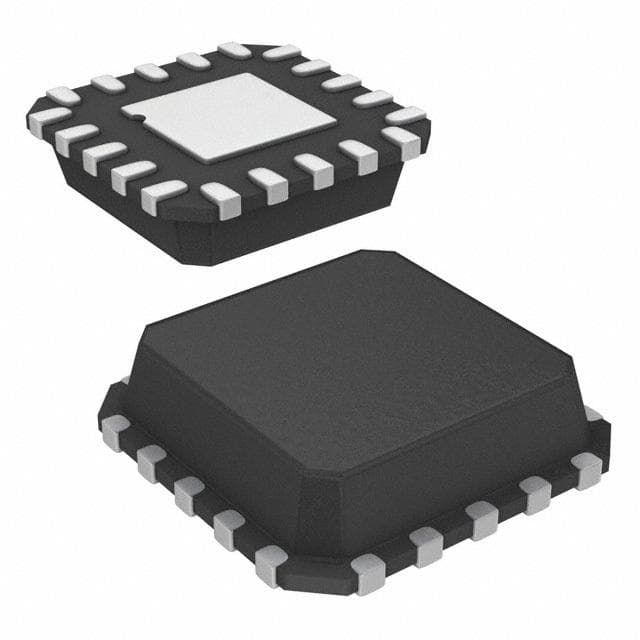

Renesas ISL9305IRTHWCNYZ-T7A
Renesas ISL9305IRTHWCNYZ-T7A

Renesas ISL9305IRTHWCNYZ-T7A

Manufacturer No:

ISL9305IRTHWCNYZ-T7A

Manufacturer:

Renesas

Package:

Description:

0.65mm PMIC 3.3V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9305IRTHWCNYZ-T7A information

Renesas ISL9305IRTHWCNYZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9305IRTHWCNYZ-T7A.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2004
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 16
  • JESD-30 Code
  • S-PQCC-N16
  • Number of Outputs
  • 4
  • Voltage - Output 1
  • 1.2V
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 2.5V
  • Number of Channels
  • 1
  • Analog IC - Other Type
  • POWER SUPPLY SUPPORT CIRCUIT
  • Adjustable Threshold
  • YES
  • Quiescent Current
  • 50?A
  • Voltage - Output 2
  • 1.8V
  • Frequency - Switching
  • 3MHz
  • Current - Output 1
  • 1.5A
  • Voltage - Output 3
  • 3.3V
  • Current - Output 2
  • 1.5A
  • Current - Output 3
  • 300mA
  • Height Seated (Max)
  • 0.8mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9305IRTHWCNYZ-T7A.

Datasheets:

ISL9305IRTHWCNYZ-T7A Overview


We are ready to ship package Tape & Reel (TR) to you.Voltage regulator supports a total of 4 outputs.In the switching regulator, you can find 16 terminals that are connected to the board.There is one important thing to keep in mind when there is a pinout for a switching regulator and that is pin 16.In order to proceed with the relow soldering, it is necessary to allow the temperature to peak at 260-peak.Due to its 3.3V voltage input, the voltage regulator 12v is capable of handling a variety of demanding tasks.The regulator controller displays a quiescent current value of 50?A for the regulator.In order to start the DC DC Switching Regulator, it will require at least 2.5V to be installed on it.The board has a Surface Mount-slot for mounting on PCBs or other types of boards.In order to avoid damaging the voltage regulator DC to DC, you should not feed it with a voltage greater than 5.5V.To ensure high-quality output, 1 channels of the voltage regulator cooperate.It will not work at temperatures lower than -40°C.Temperatures higher than 85°C are not recommended.

ISL9305IRTHWCNYZ-T7A Features


4 outputs
Peak Reflow Temperature: 260
Supply voltage range: 3.3V
Quiescent Current: 50?A


ISL9305IRTHWCNYZ-T7A Applications


There are a lot of Intersil (Renesas Electronics America)
ISL9305IRTHWCNYZ-T7A Linear Regulator Controllers applications.


  • Graphic Cards
  • Ultra-Low-Dropout
  • Voltage Regulators
  • Low-Voltage DSP Power Supplies
  • Microcontroller Power Supplies
  • Motherboards
  • Battery Operating Equipment
  • Adjustable Supplies
  • Switching Power Supplies
  • Error Amplifiers
