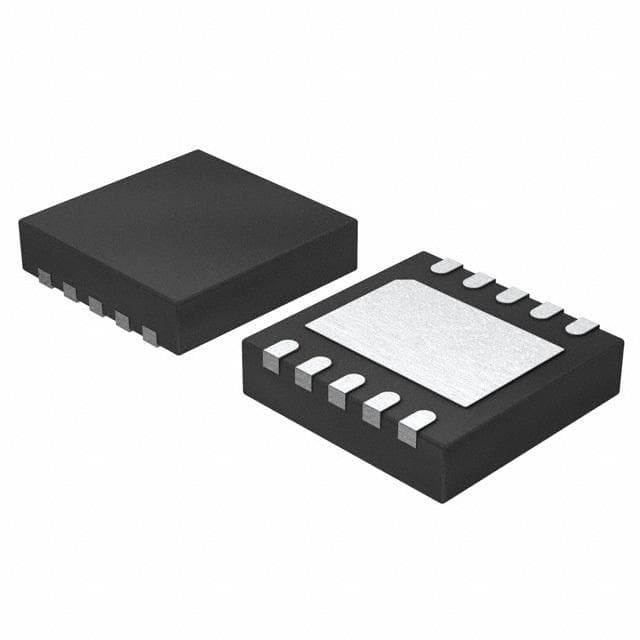

Renesas ISL9228IRZ-T

Manufacturer No:

ISL9228IRZ-T

Manufacturer:

Renesas

Package:

DFN EP

Description:

5V 1 Channel DUAL Battery Management ICs 5V 10 Pins DFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9228IRZ-T information

Renesas ISL9228IRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9228IRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
DFN EP

Number of Pins
10

Packaging
Tape & Reel

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Pin Count
10

Supply Voltage-Max (Vsup)
24V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.3V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Voltage - Output
4.2V

Length
3mm

Height Seated (Max)
1mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9228IRZ-T.

Datasheets:

intersil-isl9228irzt-datasheets-8686.pdf

ISL9228IRZ-T Overview

For the DFN EP package, it is appropriate. The analog IC in this power management IC is POWER SUPPLY SUPPORT CIRCUIT. As of right 1w, there are 1 channels available. The total number of pins is 10. It comes in a case with a Tape & Reel. This electronic component should be mounted using Surface Mount. The electronic component belongs to the Power Management Circuits family. This smart tools battery cannot be activated with a value less than -40°C. Using it below 85°C temperatures is recommended. 5V volts power it. Ensure that this battery management IC is always set to 5V. On it, there are 10 pins. As soon as Vsup reaches 24V, the maximal supply voltage is reached. Ensure that Vsup (the supply voltage) is greater than 4.3V volts. The voltage it outputs is 4.2V.

ISL9228IRZ-T Features

Available in DFN EP Package
with 10 Pins
operate supply voltage at the range of 5V
Supply Voltage-Max (Vsup) : 24V

ISL9228IRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL9228IRZ-T Battery Management ICs applications.

Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
