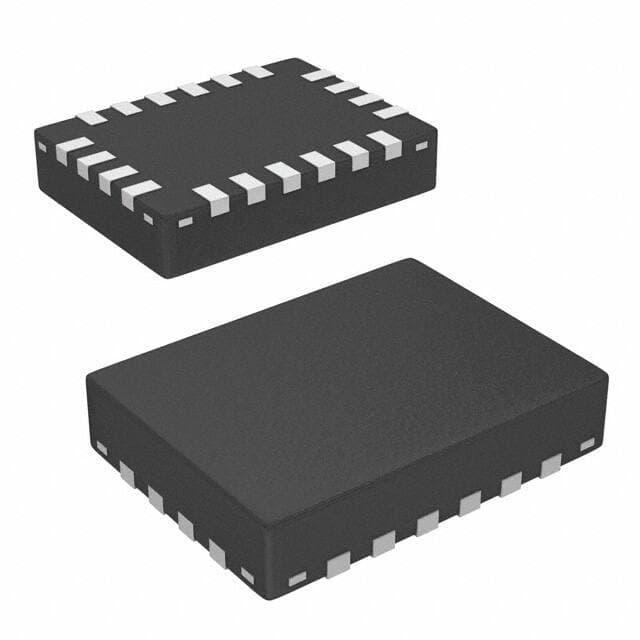

Renesas ISL9219IRZ

Manufacturer No:

ISL9219IRZ

Manufacturer:

Renesas

Package:

20-VFQFN Exposed Pad

Description:

Constant - Programmable ISL9219 20-VFQFN Exposed Pad Tube 5V 20 Terminals 20 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9219IRZ information

Renesas ISL9219IRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9219IRZ.

Type
Parameter

Factory Lead Time
5 Weeks

Mounting Type
Surface Mount

Package / Case
20-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tube

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
ALSO HAS MAX SUPPLY 28V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL9219

Pin Count
20

JESD-30 Code
R-PQCC-N20

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Fault Protection
Over Temperature, Over Voltage

Battery Chemistry
Lithium Ion/Polymer

Number of Cells
1

Voltage - Supply (Max)
6V

Programmable Features
Timer

Current - Charging
Constant - Programmable

Charge Current - Max
1A

Battery Pack Voltage
4.2V

Length
4mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9219IRZ.

Datasheets:

renesaselectronicsamericainc-isl9219irztr5332-datasheets-1450.pdf

ISL9219IRZ Overview

The package that has it is the Tube package.In order to make it more convenient, it has been included in the 20-VFQFN Exposed Pad package.This device has a mounting type of Surface Mount.A temperature setting of -40°C~85°C TA ensures reliable performance.There is an analog IC of POWER SUPPLY SUPPORT CIRCUIT used in this device.Charge the device with Constant - Programmable current.It is possible to find the related parts to the base part number ISL9219.A total of 20 terminations can be found in it.Batteries have a voltage of 4.2V.20 pins are on it in total.Several programmable features, including Timer.A maximum charging current of 1A is achieved by the part.It is possible to access 1 channels.There is 6V maximum supply voltage for this device.The device should operate on a 5VV battery.It is also possible to generate additional features with this device that are similar to those of ALSO HAS MAX SUPPLY 28V.

ISL9219IRZ Features

Battery pack voltage of 4.2V
1 channels
Addtional features of ALSO HAS MAX SUPPLY 28V
20-VFQFN Exposed Pad package

ISL9219IRZ Applications

There are a lot of Renesas Electronics America Inc.
ISL9219IRZ Battery Chargers ICs applications.

Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
Truck dealers
Floor scrubber
Material handling
