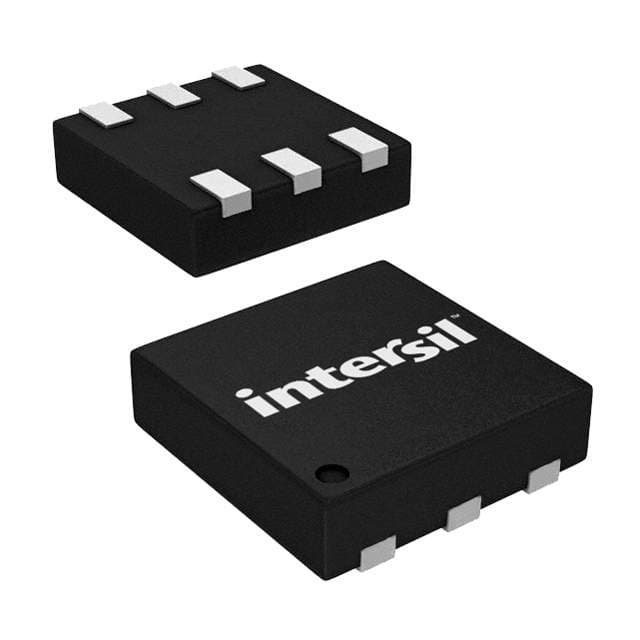

Renesas ISL9103AIRUCZ-T
Manufacturer No:
ISL9103AIRUCZ-T
Manufacturer:
Package:
Description:
6 Terminals 6-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2.4MHz Tape & Reel 500mA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL9103AIRUCZ-T information
Renesas ISL9103AIRUCZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9103AIRUCZ-T.
- Type
- Parameter
- Mount
- Surface Mount
- Number of Pins
- 6
- Packaging
- Tape & Reel
- Published
- 2008
- JESD-609 Code
- e4
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Terminal Finish
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Additional Feature
- PFM TECHNIQUE ALSO POSSIBLE; ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.8V
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Pin Count
- 6
- Number of Outputs
- 1
- Efficiency
- 95 %
- Output Voltage
- 1.8V
- Output Type
- Fixed
- Max Output Current
- 500mA
- Input Voltage-Nom
- 3.6V
- Temperature Grade
- INDUSTRIAL
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Current - Output
- 500mA
- Quiescent Current
- 32μA
- Voltage - Output
- 1.8V
- Min Input Voltage
- 2.7V
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 2.4MHz
- Max Input Voltage
- 6V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 1.8V
- Switcher Configuration
- BUCK
- Height Seated (Max)
- 0.55mm
- Width
- 1.6mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL9103AIRUCZ-T.
Datasheets:
ISL9103AIRUCZ-T Overview
This harley voltage regulator utilizes the Tape & Reel package for optimized performance. There are 6 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Fixed output on its output pins. The switching frequency of this DC-DC switching regulator reaches 2.4MHz. The output current of 500mA makes dc to dc voltage regulator feature maximum design flexibility. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 3.6V to meet the operation requirements. This voltage regulator is included in the Switching Regulator or Controllers subcategory. The adjusting voltage regulator's output voltage is maintain at 1.8V. 6 pins are used for switching regulator operation. The output voltage for this switching regulator should be kept at 1.8V at least. Voltage regulator's maximal output current reaches 500mA A to meet the operation requirements. This DC-DC switching regulator operates from a supply voltage of 6V. Voltage regulator consumes 32μA A of quiescent current without being affected by external factors. The PFM TECHNIQUE ALSO POSSIBLE; ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.8V feature adds to the efficiency and stability of this switching regulator. The high-limit maximum operating temperature 85°C allows harley voltage regulator stable operation. It operates with the minimum operating temperature of -40°C to ensure harley voltage regulator's reliability. It supports a dc to dc voltage regulator's minimum input voltage of 2.7V. This DC-DC switching regulator is designed to sustain a 6V input voltage at its maxium. This DC-DC switching regulator is equipped with 6 pin count. DC DC switching regulator has 1.8V voltage-output capability.
