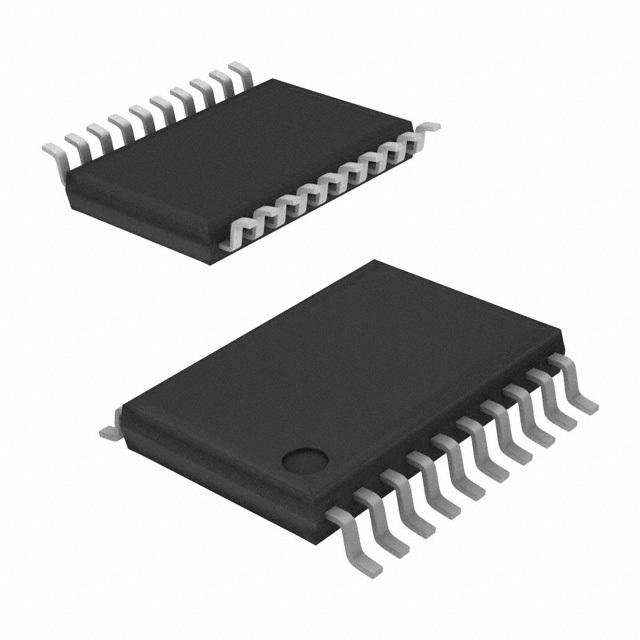

Renesas ISL90840WIV2027ZT2

Manufacturer No:

ISL90840WIV2027ZT2

Manufacturer:

Renesas

Package:

TSSOP

Description:

20 Terminations 3.3V 20 Pin Digital Potentiometers I2C 256 Positions Min 2.7V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL90840WIV2027ZT2 information

Renesas ISL90840WIV2027ZT2 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL90840WIV2027ZT2.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
20

Weight
190.990737mg

Published
2004

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
45 ppm/°C

Resistance
10kOhm

Number of Positions
256

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Interface
I2C

Number of Circuits
4

Max Supply Voltage
5.5V

Min Supply Voltage
2.7V

Operating Supply Current
1mA

Memory Type
Volatile

Converter Type
DIGITAL POTENTIOMETER

Supply Type
Single

Taper
Linear

Number of Taps
256

Total Resistance
10000Ohm

Height
1.05mm

Length
6.6mm

Width
4.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL90840WIV2027ZT2.

Datasheets:

intersil-isl90840wiv2027zt2-datasheets-0683.pdf

ISL90840WIV2027ZT2 Overview

It is contained in TSSOP pacakge.This pentometer begins to be stored by Volatile.There are embedded 4 circuits in this digital potentiometer.There are 256 taps to protect the overcurrent of this pentometer.Pentometer consists of 256 positions.It is designed 20 terminations.This programmable potentiometer includes 4 functions for your reference.The total resistance of the speed potentiometers will be 10000Ohm as shown.It is powered by 3.3V to deliver its perfomance.20 pins can be seen in The digi devices.10kOhm can limit the flow.Digital potentiometer is mounted by Surface Mount.This potentiameter gets 20 pins on it.Its type of converter can be classify by DIGITAL POTENTIOMETER.The potentiometer conducts in a supply voltage of 5V.The maximum 85°C ensures that the digital resistor runs stablily.To maintain reliability, it operates at a minimum working temperature of -40°C.The pentometer is from Digital Potentiometers family.It can handle a maximum supply voltage of 5.5V.It can work with the minimum supply voltage of 2.7V.To deliver its performance, the supply current need to be operated at the range of 1mA.The supply type can be categorized by Single.

ISL90840WIV2027ZT2 Features

Available in TSSOP package
4 Circuits
20 pins
Operate supply voltage at the range of 5V

ISL90840WIV2027ZT2 Applications

There are a lot of Intersil (Renesas Electronics America)
ISL90840WIV2027ZT2 Digital Potentiometers applications.

Testing equipment
PC
Cell phone
Household appliances
Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
