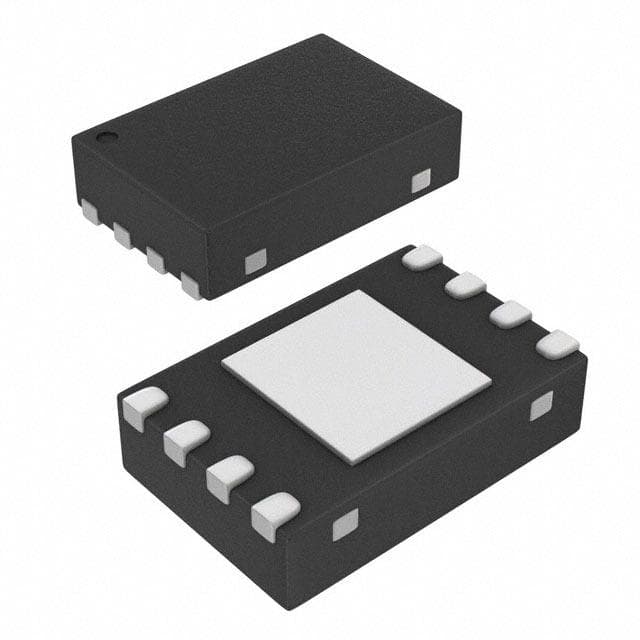

Renesas ISL9001AIRFZ-T

Manufacturer No:

ISL9001AIRFZ-T

Manufacturer:

Renesas

Package:

DFN

Description:

Fixed 0.5mm PMIC 8 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9001AIRFZ-T information

Renesas ISL9001AIRFZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9001AIRFZ-T.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
DFN

Number of Pins
8

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
PMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Qualification Status
Not Qualified

Output Type
Fixed

Polarity
Positive

Current - Output
300mA

Quiescent Current
25μA

Accuracy
0.8 %

Voltage - Output
2.9V

Output Voltage 1
2.5V

Min Input Voltage
2.3V

Max Input Voltage
6.5V

Dropout Voltage
250mV

Dropout Voltage1-Nom
0.2V

Power Supply Rejection Ratio (PSRR)
90dB

Min Current Limit
350mA

Voltage Reference
1V

Length
3mm

Width
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9001AIRFZ-T.

Datasheets:

intersil-isl9001airfzt-datasheets-6392.pdf

intersil-isl9001airfzt-datasheets-3023.pdf

ISL9001AIRFZ-T Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in DFN case. On the Linear IC itself, there are 8 terminations. Fixed is the output type of the Voltage Regulator IC. There is a current output of 300mA from this regulator IC. There are a total of 8 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 8 pins. In this case, we have a typical Other Regulators component. TAPE AND REEL is the way in which the voltage regulator IC is packed. It operates in the 25μA Quiescent Current state. You should use the regulator IC when the temperature is below 85°C. It is not possible to operate the chip below -40°C operating temperature. The IC regulator can generally output 2.9V volts on a system basis. The voltage reference characteristic of this regulator IC is specified within an 1V-volt range.

ISL9001AIRFZ-T Features

250mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
The maximum operating temperature of -40°C
Reference of 1V voltage

ISL9001AIRFZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL9001AIRFZ-T Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
