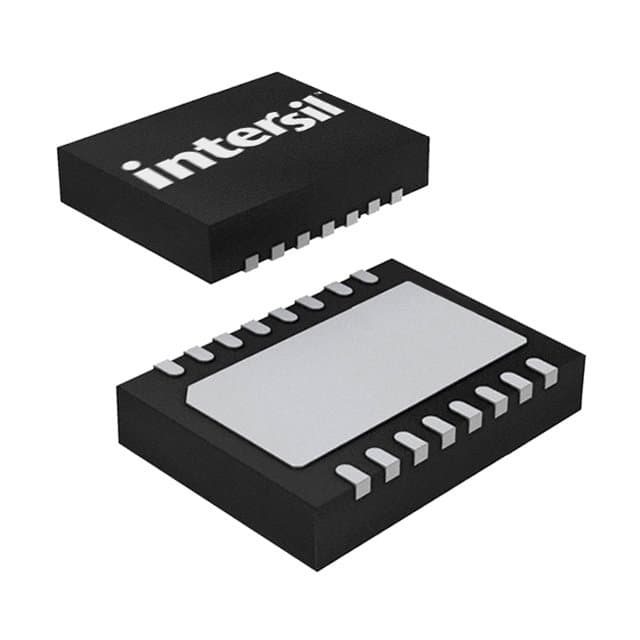

Renesas ISL89367FRTAZ-T

Manufacturer No:

ISL89367FRTAZ-T

Manufacturer:

Renesas

Package:

Description:

Tape & Reel (TR) Active Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL89367FRTAZ-T information

Renesas ISL89367FRTAZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL89367FRTAZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
16

Packaging
Tape & Reel (TR)

Published
2010

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
12V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Max Output Current
6A

Max Supply Voltage
16V

Min Supply Voltage
4.5V

Power Dissipation-Max
33.3W

Current - Output
6A

Turn On Delay Time
25 ns

Rise Time
20ns

Fall Time (Typ)
20 ns

Turn-Off Delay Time
25 ns

Interface IC Type
AND GATE BASED MOSFET DRIVER

Number of Drivers
2

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL89367FRTAZ-T.

Datasheets:

intersil-isl89367frtazt-datasheets-6779.pdf

ISL89367FRTAZ-T Overview

A packaging method of Tape & Reel (TR) is used.2 drivers are incorporated for its configuration.The configuration is based on 16 terminations.The mount method is Surface Mount.When the device is designed, it has 16 pins.Specification is for 12V supply voltage operation.There is an interface IC called AND GATE BASED MOSFET DRIVER that is employed in this device.In the maximum case, the output current can be limited to 6A.There are several useful electronic components found in its subcategory of MOSFET Drivers.The board contains 16 pins for component connections.There is a maximum value of 125°C for the allowable operating temperature.Operating temperatures must not exceed -40°C.For operation, the supply voltage of 16V is the maximum value.4.5V is the minimum voltage required to operate it.In this case, the current output is 6A.During operation, a voltage of 5mA is applied to the power supply.

ISL89367FRTAZ-T Features

Embedded in the Tape & Reel (TR) package
2 drivers
16 pins

ISL89367FRTAZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL89367FRTAZ-T gate drivers applications.

RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
