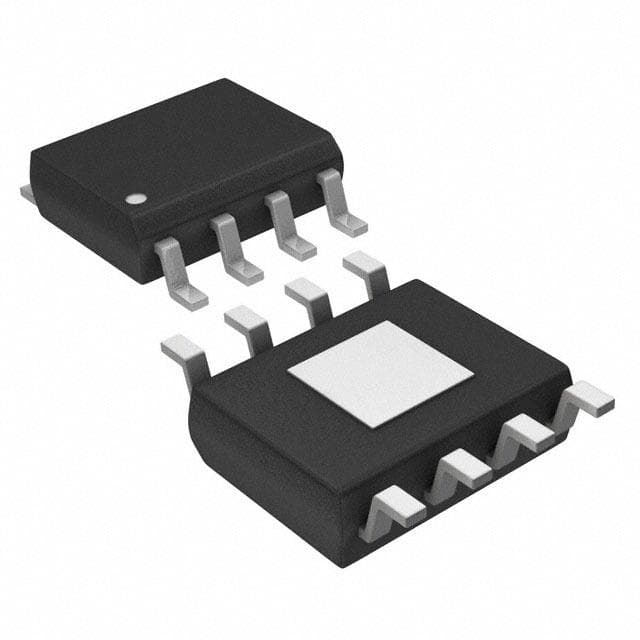

Renesas ISL89164FBECZ-T

Manufacturer No:

ISL89164FBECZ-T

Manufacturer:

Renesas

Package:

SOIC

Description:

Active EAR99 Gate Drivers ICs 2 SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL89164FBECZ-T information

Renesas ISL89164FBECZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL89164FBECZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Published
2010

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Max Output Current
6A

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
16V

Min Supply Voltage
7.5V

Current - Output
6A

Rise Time
20ns

Fall Time (Typ)
20 ns

Interface IC Type
AND GATE BASED MOSFET DRIVER

Number of Drivers
2

Turn On Time
0.05 ?s

Output Peak Current Limit-Nom
6A

High Side Driver
YES

Turn Off Time
0.05 ?s

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL89164FBECZ-T.

Datasheets:

intersil-isl89164fbeczt-datasheets-9800.pdf

intersil-isl89164fbeczt-datasheets-3596.pdf

ISL89164FBECZ-T Overview

The SOIC package offers greater flexibility.For its configuration, it incorporates 2 drivers.As a result of its configuration, it contains a maximum of 8 terminations.In this case, Surface Mount indicates how the device is mounted.When designing, the device is configured with 8 pins.This device operates with 12V supply voltage.In this case, AND GATE BASED MOSFET DRIVER serves as the interface IC.There is a maximum output current of 6A.Several electronic components are included in its subcategory of MOSFET Drivers.125°C is the maximum acceptable operating temperature.-40°C is the minimum operating temperature.Its maximum operating voltage is 16V.This device is designed to operate with a voltage of 7.5V.Mosfet gate drivers outputs a current of 6A.

ISL89164FBECZ-T Features

2 drivers
8 pins

ISL89164FBECZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL89164FBECZ-T gate drivers applications.

Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
