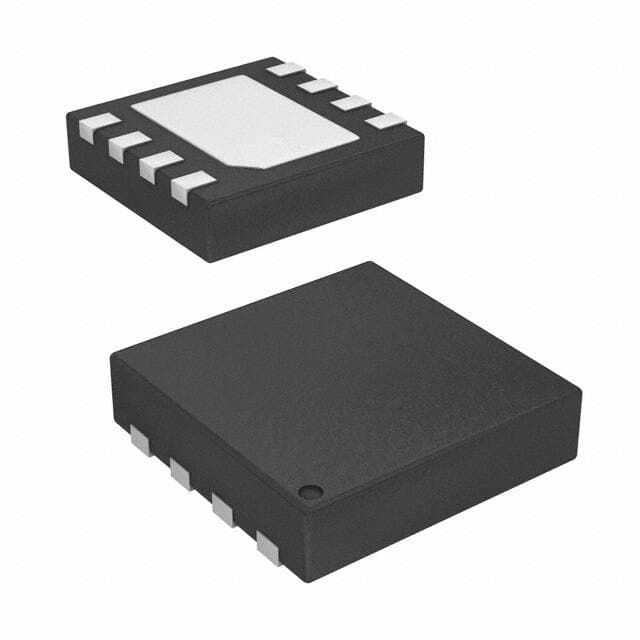

Renesas ISL89161FRTBZ

Manufacturer No:

ISL89161FRTBZ

Manufacturer:

Renesas

Package:

8-WDFN Exposed Pad

Description:

Surface Mount Tube Obsolete EAR99 Gate Drivers ICs Inverting 2 8-WDFN Exposed Pad ISL89161 Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL89161FRTBZ information

Renesas ISL89161FRTBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL89161FRTBZ.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
8-WDFN Exposed Pad

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Voltage - Supply
4.5V~16V

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL89161

Input Type
Inverting

Rise / Fall Time (Typ)
20ns 20ns

Interface IC Type
AND GATE BASED MOSFET DRIVER

Channel Type
Independent

Number of Drivers
2

Driven Configuration
Low-Side

Gate Type
N-Channel MOSFET

Current - Peak Output (Source, Sink)
6A 6A

Logic Voltage - VIL, VIH
1.85V 3.15V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL89161FRTBZ.

Datasheets:

renesaselectronicsamericainc-isl89161frtazt-datasheets-4936.pdf

ISL89161FRTBZ Overview

In order to increase flexibility, the package 8-WDFN Exposed Pad is used.There is a package in the form of Tube.Configuration is supported by 2 drivers.Surface Mount is mounted in the way of the device.Gate drivers can demonstrate Gate driverss superiorGate driversy wGate driversh a 4.5V~16V supply voltage.This device is designed with a N-Channel MOSFET gate type.This device is allowed to operate in a temperature range of -40°C~125°C TJ.This program uses the input type of Inverting.Numerous related parts are available for its base part number ISL89161.Mosfet driver utilizes the interface IC AND GATE BASED MOSFET DRIVER.

ISL89161FRTBZ Features

Embedded in the Tube package
2 drivers
Employing a gate type of N-Channel MOSFET

ISL89161FRTBZ Applications

There are a lot of Renesas Electronics America Inc.
ISL89161FRTBZ gate drivers applications.

High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
