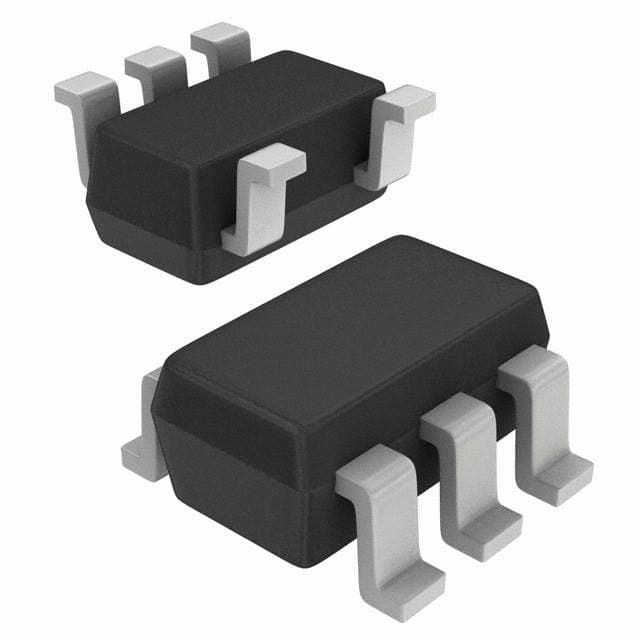

Renesas ISL88694IH5

Manufacturer No:

ISL88694IH5

Manufacturer:

Renesas

Package:

SOT-5

Description:

Tape & Reel (TR) 3.3V V 80?A ?A Signal Buffers, Repeaters, Splitters

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL88694IH5 information

Renesas ISL88694IH5 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88694IH5.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-5

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
5

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.95mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
5

JESD-30 Code
R-PDSO-G5

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
ANALOG CIRCUIT

Operating Supply Current
80?A

Length
2.9mm

Height Seated (Max)
1.45mm

Width
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL88694IH5.

Datasheets:

intersil-isl88694ih5-datasheets-0344.pdf

ISL88694IH5 Overview

Packaged in SOT-5, power buffer can be easily transported.Packaged in Tape & Reel (TR) ready for power buffer.On the op amp buffer, you can find 5 terminals.It reaches its peak reflow temperature at NOT SPECIFIED degrees Celsius.This splitter can accomplish a great deal of demanding work when supplied with 3.3V voltage.Pinouts of a power buffer start from the 5 pins.The Surface Mount on the board allows it to be mounted on PCBs or other boards.There is a voltage of 80?A which is used to power this power buffer.If you feed the repeter with a voltage higher than 5.5V, you are not supposed to use the repeter.The splitter must have at least 2.7V to be able to start up.
