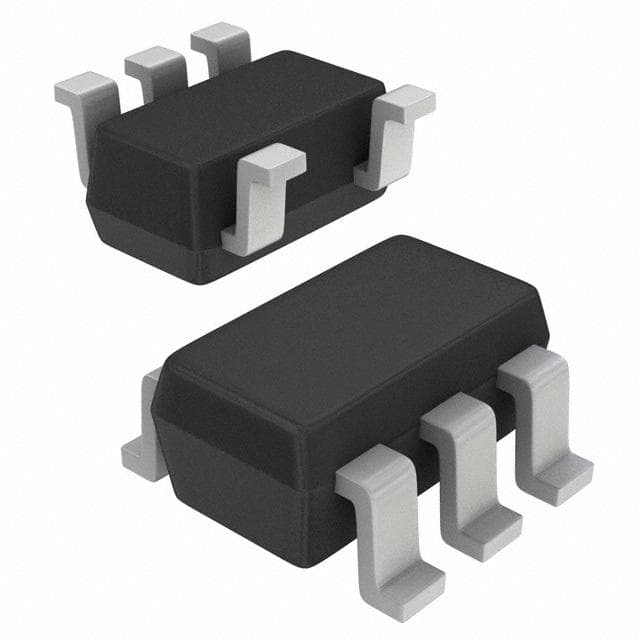

Renesas ISL88012IH522Z-T7A

Manufacturer No:

ISL88012IH522Z-T7A

Manufacturer:

Renesas

Package:

SOT-23

Description:

2.5V 5 Terminals 5-Pin Voltage supervisor 1 Channels Min 2V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL88012IH522Z-T7A information

Renesas ISL88012IH522Z-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88012IH522Z-T7A.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23

Number of Pins
5

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Type
Multi-Voltage Supervisor

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
2.5V

Pin Count
5

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
2V

Operating Supply Current
11.5μA

Adjustable Threshold
YES

Watchdog Timer
No

Reset
Active High/Active Low

Voltage - Threshold
2.19V

Reset Timeout
140 ms

Threshold Voltage
+2.19V

Undervoltage Threshold
2.16V

Overvoltage Threshold
2.22V

Number of Monitored Inputs
2

Reset Delay Time
260 ms

Width
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL88012IH522Z-T7A.

Datasheets:

intersil-isl88012ih522zt7a-datasheets-1785.pdf

ISL88012IH522Z-T7A Overview

A total of 5 terminals are used to mount this power management. Please refer to this PMIC for 1 functions. There are a total of 1 channels on this supervisor, and they are arranged in a series. Please refer to power management for SOT-23 functions. Compared to other Multi-Voltage Supervisor products, this PMIC has a lot of benefits to offer. Manage ics operate at 2.5V supply voltages. The power management is mounted by Surface Mount. There is a subcategory of this power ic known as Power Management Circuits. There are a total of 5 pins on power management. Power managment ic pin count is 5. Normally, the supply voltage (Vsup) for this PMIC should not be lower than 2V. There should be no more than 5.5V volts of supply voltage (Vsup) in this power management. It is estimated that the voltage supervisor's supply current is 11.5μA. A maximum supply temperature of 11.5μA can be used with this power management. In total, there are 2 inputs on the power management that can be monitored.

ISL88012IH522Z-T7A Features

Multi-Voltage Supervisor type
Minimum supply voltage of 2V
11.5μA operating supply current

ISL88012IH522Z-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
ISL88012IH522Z-T7A Voltage Supervisors applications.

Power distribution systems of ICU
Power distribution systems of CCU
emergency room
Medical-specific isolation transformer
Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
