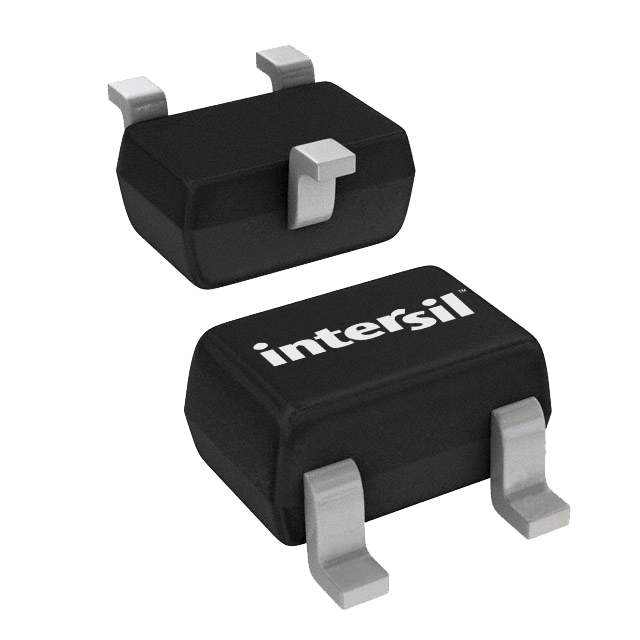

Renesas ISL88002IE46Z-T7A

Manufacturer No:

ISL88002IE46Z-T7A

Manufacturer:

Renesas

Package:

Description:

5V 3 Terminals 703, 3-Pin Voltage supervisor 1 Channels Min 1.8V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL88002IE46Z-T7A information

Renesas ISL88002IE46Z-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88002IE46Z-T7A.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
SC

Published
2005

Part Status
Active

Number of Terminations
3

ECCN Code
EAR99

Type
Simple Reset/Power-On Reset

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
RESET THRESHOLD VOLTAGE IS 4.64V

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Pin Count
703, 3

JESD-30 Code
R-PDSO-G3

Power Supplies
2/5V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.8V

Max Supply Current
400nA

Adjustable Threshold
NO

Watchdog Timer
No

Reset
Active Low

Voltage - Threshold
4.625V

Reset Timeout
140 ms

Min Reset Threshold Voltage
4.57V

Max Reset Threshold Voltage
4.681V

Threshold Voltage
+4.62V

Undervoltage Threshold
4.57V

Overvoltage Threshold
4.681V

Number of Monitored Inputs
1

Length
2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL88002IE46Z-T7A.

Datasheets:

intersil-isl88002ie46zt7a-datasheets-0397.pdf

ISL88002IE46Z-T7A Overview

There are 3 terminals connected to this power management, which makes it easy to mount. For your reference, this IC power includes a list of 1 functions. This power managment ic consists of 1 channels, each of which can be used independently. For your reference, this PMIC includes a list of SC functions. There are a lot of similarities between this IC management and other Simple Reset/Power-On Reset products. IC management conducts in a 5V-voltage supply. The mount is provided by Surface Mount. Power Management Circuits is a subcategory of this PMIC chip. The total number of pins on this power management is 703, 3. In order for this IC power to function, the supply voltage (Vsup) cannot be less than 1.8V. It is recommended that the maximum supply voltage (Vsup) in this IC power be no more than 5.5V volts. The supply current of the power management is 400nA. Among other features, IC power can be also taken advantage of [0], for instance. The power management must be powered by 2/5V volts to function properly. At most, voltage supervisor can operate at a supply temperature of 400nA. In total, the voltage supervisor has 1 inputs which are monitored at the same time.

ISL88002IE46Z-T7A Features

Simple Reset/Power-On Reset type
Minimum supply voltage of 1.8V
400nA operating supply current

ISL88002IE46Z-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
ISL88002IE46Z-T7A Voltage Supervisors applications.

Medical-specific isolation transformer
Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
Sensitive sensors
