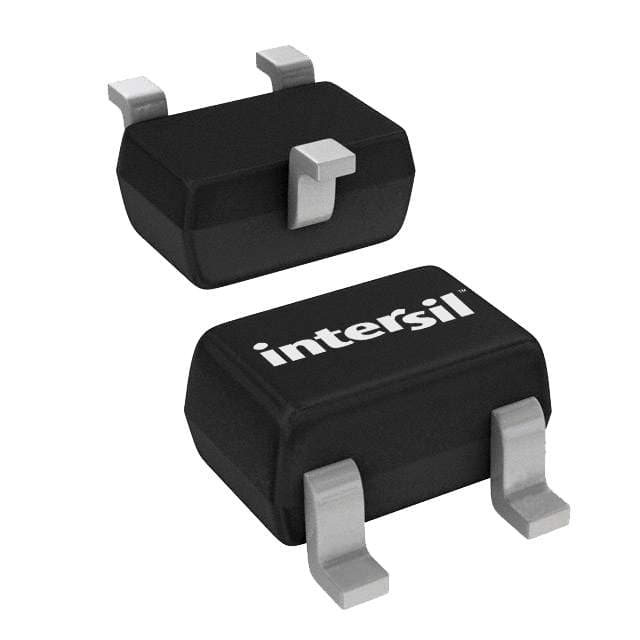

Renesas ISL88002IE44Z-T7A
Manufacturer No:
ISL88002IE44Z-T7A
Manufacturer:
Package:
SC
Description:
5V 3 Terminals 703, 3-Pin Voltage supervisor 1 Channels Min 1.8V Max 5.5V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL88002IE44Z-T7A information
Renesas ISL88002IE44Z-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88002IE44Z-T7A.
- Type
- Parameter
- Factory Lead Time
- 5 Weeks
- Mount
- Surface Mount
- Package / Case
- SC
- Published
- 2005
- JESD-609 Code
- e3
- Part Status
- Active
- Number of Terminations
- 3
- ECCN Code
- EAR99
- Type
- Simple Reset/Power-On Reset
- Terminal Finish
- Matte Tin (Sn)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Additional Feature
- RESET THRESHOLD VOLTAGE IS 4.38V
- Subcategory
- Power Management Circuits
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Number of Functions
- 1
- Supply Voltage
- 5V
- Terminal Pitch
- 0.65mm
- Pin Count
- 703, 3
- JESD-30 Code
- R-PDSO-G3
- Power Supplies
- 2/5V
- Temperature Grade
- INDUSTRIAL
- Number of Channels
- 1
- Min Supply Voltage
- 1.8V
- Operating Supply Current
- 400nA
- Max Supply Current
- 400nA
- Adjustable Threshold
- NO
- Watchdog Timer
- No
- Reset
- Active Low
- Voltage - Threshold
- 4.38V
- Reset Timeout
- 140 ms
- Min Reset Threshold Voltage
- 4.327V
- Max Reset Threshold Voltage
- 4.433V
- Threshold Voltage
- +4.38V
- Undervoltage Threshold
- 4.327V
- Overvoltage Threshold
- 4.433V
- Number of Monitored Inputs
- 1
- Length
- 2mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas ISL88002IE44Z-T7A.
ISL88002IE44Z-T7A Overview
This voltage supervisor has a total of 3 mounting terminals that can be used for mounting. Please find attached 1 functions for your reference in this IC power. Power management consists of 1 channels, each of which can be used independently. Please find attached SC functions for your reference in this IC power. With power management, you get a lot of benefits that you won't find in other Simple Reset/Power-On Reset products. IC management conducts at a voltage of 5V. By Surface Mount, IC management has been mounted. A IC power such as this can be classified as a Power Management Circuits power management system. 703, 3 pins are present in total in this power management. It is recommended that Vsup should not be less than 1.8V for this IC power. The maximum supply voltage (Vsup) is not to exceed 5.5V volts in this IC management. The power management's supply current is 400nA. As well as this, there are other features to mention such as [0], for example. To be able to work, this power management requires 2/5V volts of power. A maximum supply temperature of 400nA can be used. On the power management, 1 inputs are monitored.
ISL88002IE44Z-T7A Features
Simple Reset/Power-On Reset type
Minimum supply voltage of 1.8V
400nA operating supply current
ISL88002IE44Z-T7A Applications
There are a lot of Intersil (Renesas Electronics America)
ISL88002IE44Z-T7A Voltage Supervisors applications.
- Medical-specific insulation monitor
- Transformer load monitoring equipment
- External alarm
- Display equipment
- DC stabilized power supply module
- Insulation fault location system
- Magnetic resonance imaging
- Stable power system
- Sensitive sensors
- Efficient information transmission
