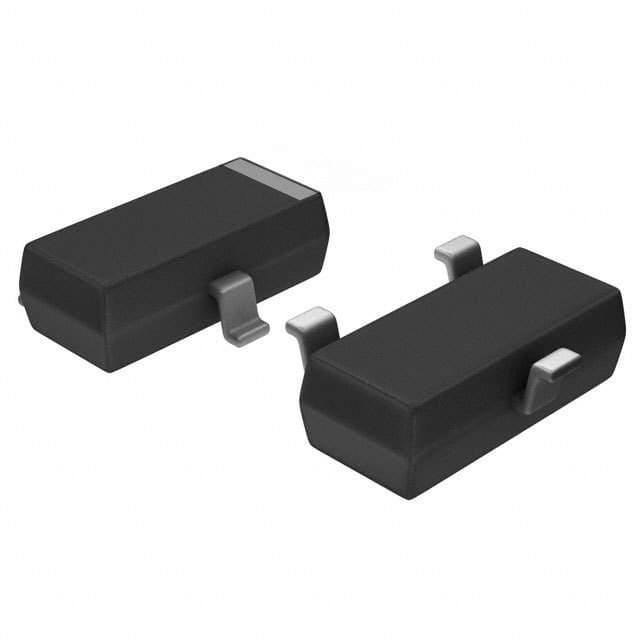

Renesas ISL88001IH22Z-TK

Manufacturer No:

ISL88001IH22Z-TK

Manufacturer:

Renesas

Package:

TO-236-3

Description:

2.5V 3 Terminals Voltage supervisor 1 Channels Min 1.8V Max 2.75V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL88001IH22Z-TK information

Renesas ISL88001IH22Z-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88001IH22Z-TK.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
TO-236-3

Number of Pins
3

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
3

ECCN Code
EAR99

Type
Simple Reset/Power-On Reset

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.95mm

Power Supplies
2/5V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Min Supply Voltage
1.8V

Operating Supply Current
325nA

Max Supply Current
325nA

Adjustable Threshold
NO

Watchdog Timer
No

Reset
Active Low

Voltage - Threshold
2.19V

Reset Timeout
140 ms

Min Reset Threshold Voltage
2.164V

Max Reset Threshold Voltage
2.216V

Threshold Voltage
+2.19V

Undervoltage Threshold
2.164V

Overvoltage Threshold
2.216V

Number of Monitored Inputs
1

Length
2.92mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL88001IH22Z-TK.

Datasheets:

intersil-isl88001ih22ztk-datasheets-2459.pdf

intersil-isl88001ih22ztk-datasheets-2401.pdf

ISL88001IH22Z-TK Overview

There are 3 terminals connected to this power management, which makes it easy to mount. For your reference, this IC power includes a list of 1 functions. This power managment ic consists of 1 channels, each of which can be used independently. For your reference, this PMIC includes a list of TO-236-3 functions. There are a lot of similarities between this IC management and other Simple Reset/Power-On Reset products. Specifies a reflow peak temperature of 260 for the package during reflow. IC management conducts in a 2.5V-voltage supply. The mount is provided by Surface Mount. Power Management Circuits is a subcategory of this PMIC chip. There are 3 pins on the supervisor. In order for this IC power to function, the supply voltage (Vsup) cannot be less than 1.8V. It is recommended that the maximum supply voltage (Vsup) in this IC power be no more than 2.75V volts. The supply current of the power management is 325nA. The power management must be powered by 2/5V volts to function properly. At most, voltage supervisor can operate at a supply temperature of 325nA. In total, the voltage supervisor has 1 inputs which are monitored at the same time.

ISL88001IH22Z-TK Features

Simple Reset/Power-On Reset type
Minimum supply voltage of 1.8V
325nA operating supply current

ISL88001IH22Z-TK Applications

There are a lot of Intersil (Renesas Electronics America)
ISL88001IH22Z-TK Voltage Supervisors applications.

Medical-specific isolation transformer
Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
Sensitive sensors
