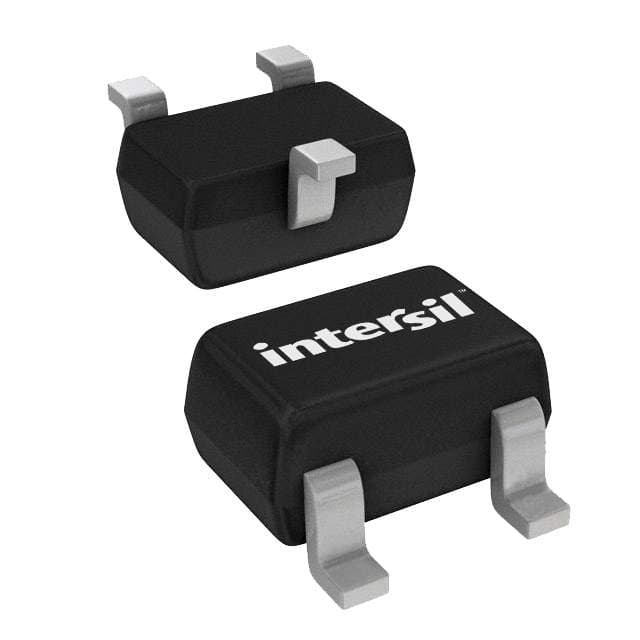

Renesas ISL88001IE46Z-T

Manufacturer No:

ISL88001IE46Z-T

Manufacturer:

Renesas

Package:

Description:

5V 3 Terminals 703, 3-Pin Voltage supervisor 1 Channels Min 1.8V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL88001IE46Z-T information

Renesas ISL88001IE46Z-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL88001IE46Z-T.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
SC

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
3

ECCN Code
EAR99

Type
Simple Reset/Power-On Reset

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
RESET THRESHOLD VOLTAGE IS 4.64V

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Pin Count
703, 3

JESD-30 Code
R-PDSO-G3

Power Supplies
2/5V

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.8V

Operating Supply Current
400nA

Max Supply Current
400nA

Adjustable Threshold
NO

Watchdog Timer
No

Reset
Active Low

Voltage - Threshold
4.625V

Reset Timeout
140 ms

Min Reset Threshold Voltage
4.57V

Max Reset Threshold Voltage
4.681V

Threshold Voltage
+4.64V

Undervoltage Threshold
4.57V

Overvoltage Threshold
4.681V

Number of Monitored Inputs
1

Length
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL88001IE46Z-T.

Datasheets:

intersil-isl88001ie46zt-datasheets-1750.pdf

ISL88001IE46Z-T Overview

There are 3 mounting terminals on the voltage supervisor, each of which has a different function. The purpose of this IC management is to provide you with a reference of 1 functions. There are 1 channels on this power managment ic that can be found in a series. The purpose of this IC power is to provide you with a reference of SC functions. There are a lot of similarities between this IC power and other Simple Reset/Power-On Reset products. As specified in the package specification, the peak reflow temperature of the package is set at 260. When a supply voltage of 5V is applied to the power ic, it conducts. Surface Mount mounts power management on the wall. The power management belongs to the Power Management Circuits subcategory. A total of 703, 3 pins are located on this power management. It is recommended that the minimum supply voltage (Vsup) for this IC management should not be less than 1.8V volts. This IC power should be powered by no more than 5.5V volts of supply voltage (Vsup). For this power management, there is an 400nA volt supply current. Additionally, IC management are a variety of features, for example [0], to name a few. The voltage supervisor requires a power source of 2/5V volts in order to work correctly. The maximum supply temperature voltage supervisor can handle is 400nA. The power management has 1 monitored inputs.

ISL88001IE46Z-T Features

Simple Reset/Power-On Reset type
Minimum supply voltage of 1.8V
400nA operating supply current

ISL88001IE46Z-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL88001IE46Z-T Voltage Supervisors applications.

Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
Sensitive sensors
Efficient information transmission
Functional modules
