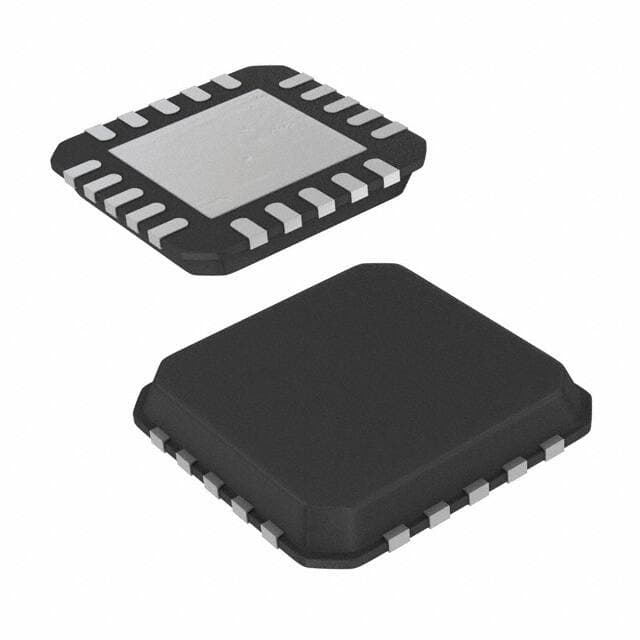

Renesas ISL8560IRZ-T
Manufacturer No:
ISL8560IRZ-T
Manufacturer:
Package:
20-VQFN Exposed Pad
Description:
20 Terminals 9V ISL8560 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 100kHz~600kHz Tape & Reel (TR) 2A 20-VQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL8560IRZ-T information
Renesas ISL8560IRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8560IRZ-T.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 20-VQFN Exposed Pad
- Surface Mount
- YES
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 20
- Terminal Finish
- Matte Tin (Sn) - annealed
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Terminal Pitch
- 0.8mm
- Base Part Number
- ISL8560
- JESD-30 Code
- S-PQCC-N20
- Function
- Step-Down
- Number of Outputs
- 1
- Voltage - Input (Max)
- 60V
- Output Type
- Adjustable
- Voltage - Input (Min)
- 9V
- Input Voltage-Nom
- 24V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Voltage - Output (Min/Fixed)
- 1.21V
- Topology
- Buck
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 100kHz~600kHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Voltage - Output (Max)
- 55V
- Length
- 6mm
- Width
- 6mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL8560IRZ-T.
ISL8560IRZ-T Overview
For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In this voltage regulator, there are a total of 20 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the 20-VQFN Exposed Pad package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~125°C TJ when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 100kHz~600kHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 9V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 1.21V. It features maximum design flexibility due to dc to dc voltage regulator's 2A output current. Voltage regulator has a maximum input voltage of 60V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 24V. The ISL8560 family of DC/DC regulators includes this DC/DC regulator. Based on the maximal adjusting voltage regulator's output voltage of 55V, adjusting voltage regulator can be operated easily.
