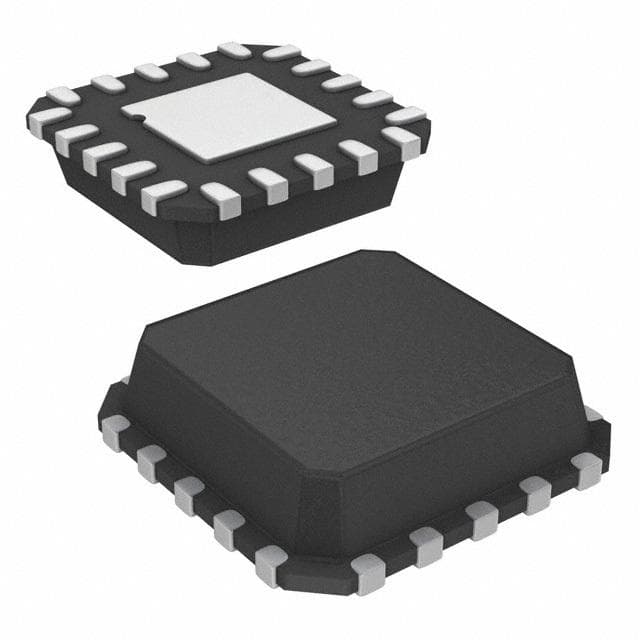

Renesas ISL84782IR-T

Manufacturer No:

ISL84782IR-T

Manufacturer:

Renesas

Package:

QFN

Description:

QUAD Analog Switches BREAK-BEFORE-MAKE 16 Pins 1.8V QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84782IR-T information

Renesas ISL84782IR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84782IR-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
16

Published
2004

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
750mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.6V

Number of Channels
4

Number of Circuits
2

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Operating Supply Current
50nA

Throw Configuration
4PST

Logic Function
Demultiplexer, Multiplexer

Supply Type
Single

Supply Current-Max (Isup)
0.0009mA

On-state Resistance Match-Nom
0.12Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
33ns

Signal Current-Max
0.3A

Length
3mm

Height Seated (Max)
1mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84782IR-T.

Datasheets:

intersil-isl84782irt-datasheets-5884.pdf

ISL84782IR-T Overview

Shipping overseas is convenient with the electronic component packed in QFN. Total terminations are 16. High-quality output is provided by the electronic component's 4 channels. If the voltage supply is 1.8V volts, the electrical component should be turned on and run. The electronic part body is injected with 16 pins. There are 2 circuits in this multiplexer. There is 750mOhm internal resistance in this digital multiplexer. For functions related to 16 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. Analogue multiplexers of the Single supply type that are cost-effective. For this multiplexer to operate, 50nA current would be sufficient. It is integrated with DIFFERENTIAL MULTIPLEXER analog ICs. Temperatures above 85°C should not be used to operate the switches. For the switch device to function, a voltage of 1.6V is required.

ISL84782IR-T Features

4 Channels
50nA Supply Current

ISL84782IR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84782IR-T Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
