Renesas ISL84782IR

Manufacturer No:

ISL84782IR

Manufacturer:

Renesas

Package:

QFN

Description:

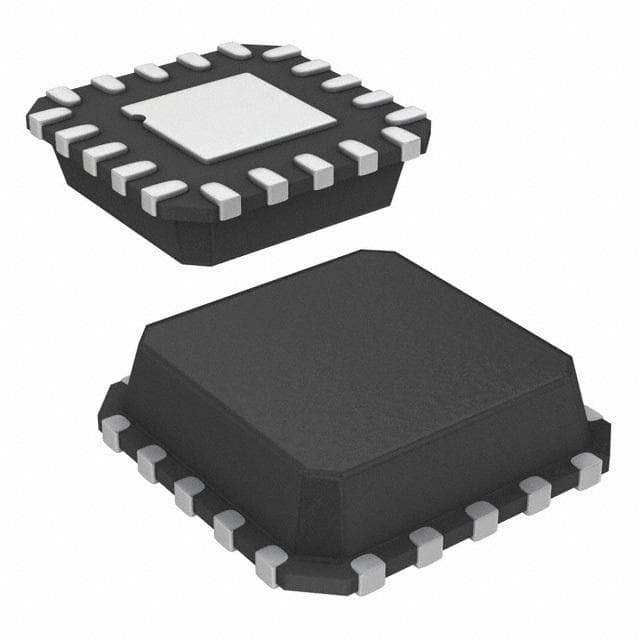

QUAD Analog Switches BREAK-BEFORE-MAKE 16 Pins 1.8V QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84782IR information

Renesas ISL84782IR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84782IR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
16

Packaging
Bulk

Published
2004

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
750mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
1.8/3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.6V

Number of Channels
4

Number of Circuits
2

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Operating Supply Current
50nA

Throw Configuration
4PST

Logic Function
Demultiplexer, Multiplexer

Supply Type
Single

Supply Current-Max (Isup)
0.0009mA

On-state Resistance Match-Nom
0.12Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
33ns

Signal Current-Max
0.3A

Length
3mm

Height Seated (Max)
1mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84782IR.

Datasheets:

intersil-isl84782ir-datasheets-5795.pdf

ISL84782IR Overview

As the electronic part is packed in QFN, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Bulk. Total terminations are 16. The electronic part provides high-quality output because it has 4 channels. Powered by a 1.8V voltage supply, the electrical part should be switched on and run. The electrical component body receives 16 pins. There are 2 circuits in this switch device. An switch multiplexer with 750mOhm internal resistance has a value of 750mOhm. Datasheets for 16 pin functions are available upon request. The analogue multiplexer in this example is a typical Multiplexer or Switches. The analog switch ic is of the Single supply type and is cost-effective. An operating current of 50nA would be sufficient for this switch device. An analog IC with the number DIFFERENTIAL MULTIPLEXER is integrated into this board. Temperatures above 85°C degrees Celsius should not be operated by the multiplexer. Providing the analog switch ic with electricity requires a minimum voltage of 1.6V.

ISL84782IR Features

4 Channels
50nA Supply Current

ISL84782IR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84782IR Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
