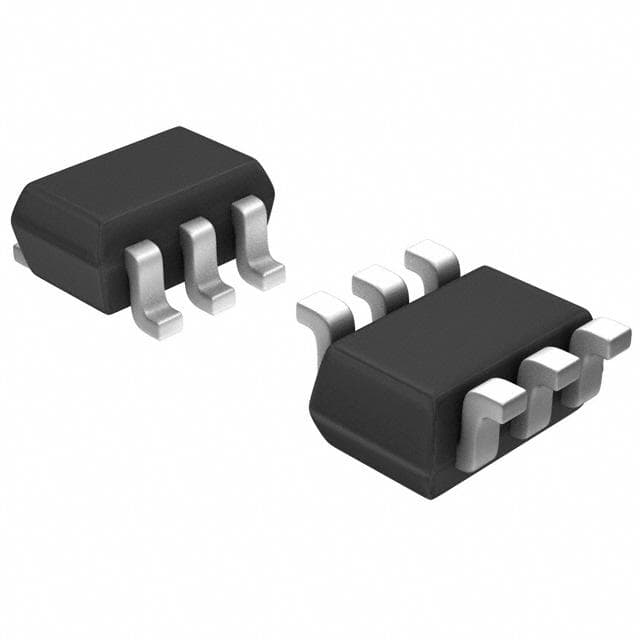

Renesas ISL84714IH-T

Manufacturer No:

ISL84714IH-T

Manufacturer:

Renesas

Package:

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 6 Pins 1.8V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84714IH-T information

Renesas ISL84714IH-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84714IH-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
6

Packaging
Tape & Reel (TR)

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Resistance
600mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
1.8V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Output
SEPARATE OUTPUT

Pin Count
6

Qualification Status
Not Qualified

Number of Channels
1

Operating Supply Current
18nA

Number of Bits
1

Throw Configuration
SPDT

Supply Type
Single

Switching
BREAK-BEFORE-MAKE

Switch-off Time-Max
9ns

Normal Position
NO/NC

Length
2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84714IH-T.

Datasheets:

intersil-isl84714iht-datasheets-7543.pdf

ISL84714IH-T Overview

High reliability is ensured by the advanced packaging method Tape & Reel (TR). Totally, there are 6 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 1.8V voltage supply. A total of 6 pins are injected into the electrical part body. In this multiplexer, the internal resistance is 600mOhm. For details about the functions of 6 pins, please refer to the datasheets. There is Multiplexer or Switches analog multiplexer like this in the world. The digital multiplexer has a low cost Single supply. For this digital switch to work, 18nA current would suffice. As far as the outputs go, this switch multiplexer utilizes SEPARATE OUTPUT of them. An environment with a temperature greater than 85°C should not be used to operate the digital switches. It is capable of carrying out 1-bit operation.

ISL84714IH-T Features

1 Channels
18nA Supply Current
1-Bit

ISL84714IH-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84714IH-T Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
