Renesas ISL84684IIZ-T
Renesas ISL84684IIZ-T

Renesas ISL84684IIZ-T

Manufacturer No:

ISL84684IIZ-T

Manufacturer:

Renesas

Package:

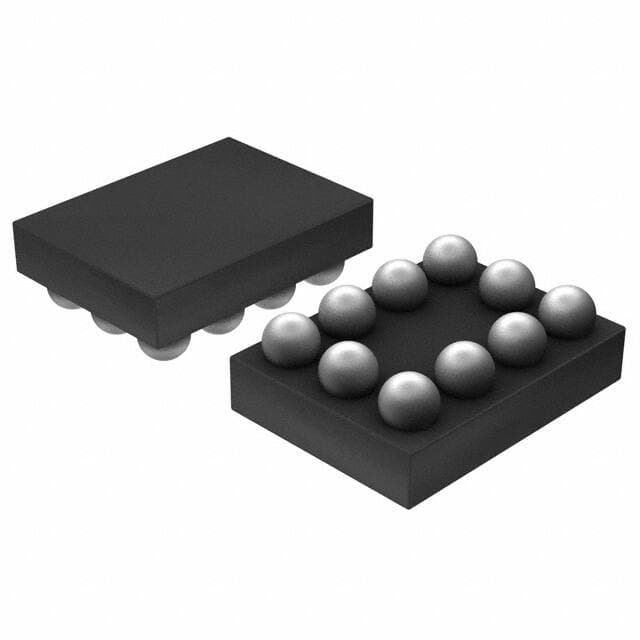

10-UFBGA, WLCSP

Description:

40ns, 35ns SPDT 140mOhm Typ BOTTOM Analog Switches ISL84684 900nA Typ 3V 10-UFBGA, WLCSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84684IIZ-T information

Renesas ISL84684IIZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84684IIZ-T.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-UFBGA, WLCSP
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Cut Tape (CT)
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 10
  • Terminal Finish
  • Matte Tin (Sn)
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 2
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • ISL84684
  • JESD-30 Code
  • R-PBGA-B10
  • Supply Voltage-Max (Vsup)
  • 4.5V
  • Number of Channels
  • 1
  • Number of Circuits
  • 2
  • On-State Resistance (Max)
  • 140mOhm Typ
  • Off-state Isolation-Nom
  • 56 dB
  • Current - Leakage (IS(off)) (Max)
  • 900nA Typ
  • Channel Capacitance (CS(off), CD(off))
  • 140pF
  • On-state Resistance Match-Nom
  • 0.05Ohm
  • Switch Circuit
  • SPDT
  • Switch Time (Ton, Toff) (Max)
  • 40ns, 35ns
  • Charge Injection
  • 260pC
  • Channel-to-Channel Matching (?Ron)
  • 50m ?
  • Crosstalk
  • -105dB @ 100kHz
  • Switch-on Time-Max
  • 60ns
  • Switch-off Time-Max
  • 40ns
  • Voltage - Supply, Single (V+)
  • 1.8V~4.5V
  • Height Seated (Max)
  • 0.69mm
  • Width
  • 1.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL84684IIZ-T.

Datasheets:

ISL84684IIZ-T Overview


Shipping overseas is convenient due to the electrical component's packing in 10-UFBGA, WLCSP. This packaging method provides high reliability because it uses advanced packaging techniques. Multiplexers like this are mounted in the Surface Mount position. Multiplexers and demultiplexers have a number of circuits 2:1. Operational temperature extended around -40°C~85°C TA. 10 terminations have been made so far. Due to its 1 channels, the electrical component produces high-quality output. When a voltage supply of 3V is used, the electronic component should be turned on and run. Multiplexers built on a SPDT switching circuit are built. It consists of 2 circuits. Try searching for the analog switch ic with ISL84684 if you are looking for variants. This analogue multiplexer requires a voltage of 1.8V~4.5V when it drains from a single voltage supply.

ISL84684IIZ-T Features


1 Channels
Switch Circuit: SPDT


ISL84684IIZ-T Applications


There are a lot of Renesas Electronics America Inc.
ISL84684IIZ-T Analog Switches & Multiplexers ICs applications.


  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems
  • Existing multiplexer applications (both fault-protected and nonfault-protected)
  • New designs requiring multiplexer functions
