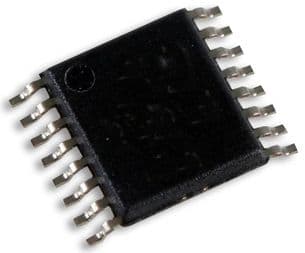

Renesas ISL84052IAZ

Manufacturer No:

ISL84052IAZ

Manufacturer:

Renesas

Package:

SSOP

Description:

Analog Switches BREAK-BEFORE-MAKE 5V SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84052IAZ information

Renesas ISL84052IAZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84052IAZ.

Type
Parameter

Factory Lead Time
6 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
16

Packaging
Bulk

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
16

Resistance
225Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
VIDEO APPLICATION

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
30

Operating Supply Voltage
9V

Temperature Grade
INDUSTRIAL

Number of Channels
4

Number of Circuits
2

Max Supply Voltage
12V

Min Supply Voltage
2V

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Operating Supply Current
1?A

Nominal Supply Current
100nA

Max Supply Current
1?A

Throw Configuration
4PST

Propagation Delay
75 ns

Turn On Delay Time
180 ns

Logic Function
Demultiplexer, Multiplexer

Supply Type
Dual, Single

Neg Supply Voltage-Nom (Vsup)
-5V

Turn-Off Delay Time
100 ns

Max Dual Supply Voltage
6V

Min Dual Supply Voltage
2V

High Level Output Current
30mA

Low Level Output Current
30mA

Off-state Isolation-Nom
90 dB

On-state Resistance Match-Nom
6Ohm

Switching
BREAK-BEFORE-MAKE

Download datasheets and manufacturer documentation for Renesas ISL84052IAZ.

Datasheets:

intersil-isl84052iaz-datasheets-2065.pdf

ISL84052IAZ Overview

Due to its SSOP packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Bulk. A total of 16 terminations have been recorded. The electronic part delivers high-quality output through its 4 channels. Turning on and running the electrical part should be easy with a 5V voltage supply. A 2 circuit is present in this switch device. Internally, this switch multiplexer has a resistance of 225Ohm. You can find the functions of the 16 pins in the datasheets. A analogue multiplexer of this type is a Multiplexer or Switches. It is normally recommended that users do not supply the multiplexer with voltages higher than 12V. Digital switch that provides Dual, Single power at a cost-effective price. In order for the electronic part to function properly, the lowest voltage should be 2V. The switch device would be able to operate with 1?A current. It may damage the digital multiplexer if the voltage is higher than 1?A. It is possible to supply this switch device with dual voltages. However, it is not advisable to exceed 6V. If you are using a dual power supply, you should attach at least 2V. There is an analog IC DIFFERENTIAL MULTIPLEXER integrated with this board. It can operate from 9V operating voltages. Additional features include: VIDEO APPLICATION. Temperatures over 85°C should not be allowed for the multiplexer to operate.

ISL84052IAZ Features

4 Channels
1?A Supply Current
Additional Features: VIDEO APPLICATION

ISL84052IAZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84052IAZ Analog Switches & Multiplexers ICs applications.

Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
