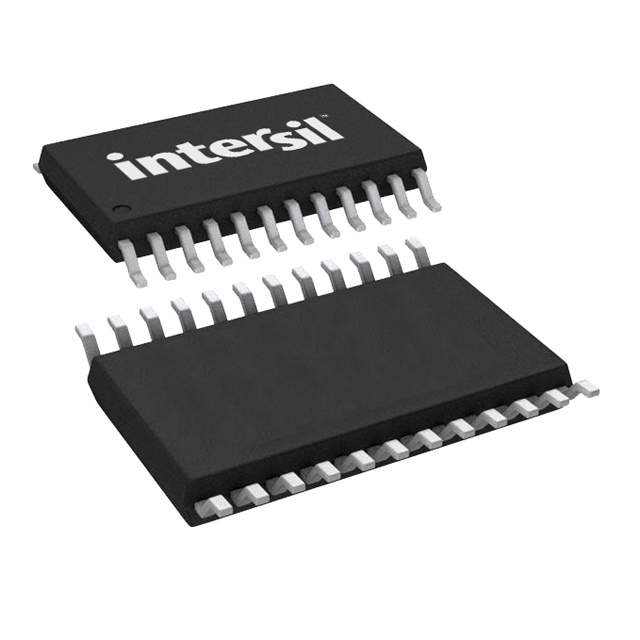

Renesas ISL83387EIV

Manufacturer No:

ISL83387EIV

Manufacturer:

Renesas

Package:

TSSOP

Description:

24 Terminations Receivers 3 Bits 3 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL83387EIV information

Renesas ISL83387EIV technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL83387EIV.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Packaging
Bulk

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
3

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3.3/5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Nominal Supply Current
10?A

Data Rate
250 kbps

Differential Output
NO

Input Characteristics
SCHMITT TRIGGER

Interface IC Type
LINE TRANSCEIVER

Driver Number of Bits
3

Receiver Number of Bits
3

Interface Standard
EIA-232; TIA-232; V.24; V.28

Out Swing-Min
5 V

Length
7.8mm

Height Seated (Max)
1.2mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL83387EIV.

Datasheets:

intersil-isl83387eiv-datasheets-3829.pdf

intersil-isl83387eiv-datasheets-4267.pdf

ISL83387EIV Overview

The enhanced TSSOP package makes it an excellent LED driver.Bulk package is used to mount this receiver.Wide receiver can operate within the range of 3.3V supply voltages efficiently.This integrated circuit has 24 terminations designed for driving and receiving signals from data.ICs that are packaged with market standard pinouts are available on the market.Package size is drastically reduced by downsizing ICs and mounting them in high-density Surface Mount arrays.An important feature of this ic receiver was its 3-bit resolution capability.There is usually a 3-bit resolution specified for this receiver when it is used.An additional subcategory named Line Driver or Receivers can be created for this rf transceiver module.It is designed to be operated from a 3.3/5V power supply, so the module isolated transceiver will work effectively.A LINE TRANSCEIVER interface IC controls and manages the sharing of information between devices with ic receiver.This transceiver module may not exceed its operating temperature of 85°C.This transceiver module is intended to be handled with a supply voltage lower than 5.5V.For this module isolated transceiver to work properly, it needs at least 3V of voltage supply.Keeping the operating temperature over -40°C is recommended.
