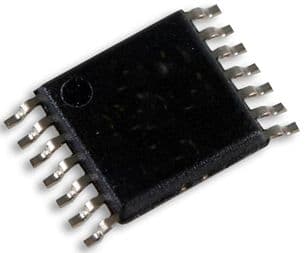

Renesas ISL80138IVEAJZ

Manufacturer No:

ISL80138IVEAJZ

Manufacturer:

Renesas

Package:

DFN

Description:

Adjustable, Fixed 0.65mm PMIC 14 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL80138IVEAJZ information

Renesas ISL80138IVEAJZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL80138IVEAJZ.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Package / Case
DFN

Published
2007

Part Status
Active

Number of Terminations
14

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
0.65mm

Pin Count
14

Number of Outputs
1

Output Type
Adjustable, Fixed

Max Output Current
150mA

Polarity
Positive

Current - Output
150mA

Quiescent Current
18μA

Accuracy
1 %

Voltage - Output
12V

Min Input Voltage
6V

Max Input Voltage
40V

Power Supply Rejection Ratio (PSRR)
66dB

Min Current Limit
175mA

Voltage Reference
1.223V

Length
5mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL80138IVEAJZ.

Datasheets:

intersil-isl80138iveajz-datasheets-9775.pdf

intersil-isl80138iveajz-datasheets-4750.pdf

ISL80138IVEAJZ Overview

Packaging of the Liner regulator IC takes the form of a DFN case. The PMIC chip has 14 terminations. Adjustable, Fixed is the Voltage Regulator Chip's output type. Currently, 150mA are being output by it at the moment. The sum of the pins in this unit is 14. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. Upon reaching its maximal output current, 150mA, it is able to satisfy the operation requirements. It operates in the 18μA Quiescent Current state. In the event that the temperature in your room falls below 125°C, then this feature should be used at such a time. During the operation of the chip, the chip's operating temperature is not less than -40°C degrees. In general, this voltage regulator IC will output 12V volts when used as a system part. Depending on the voltage reference characteristic, it is specified to be within 1.223V volts of the nominal voltage.
