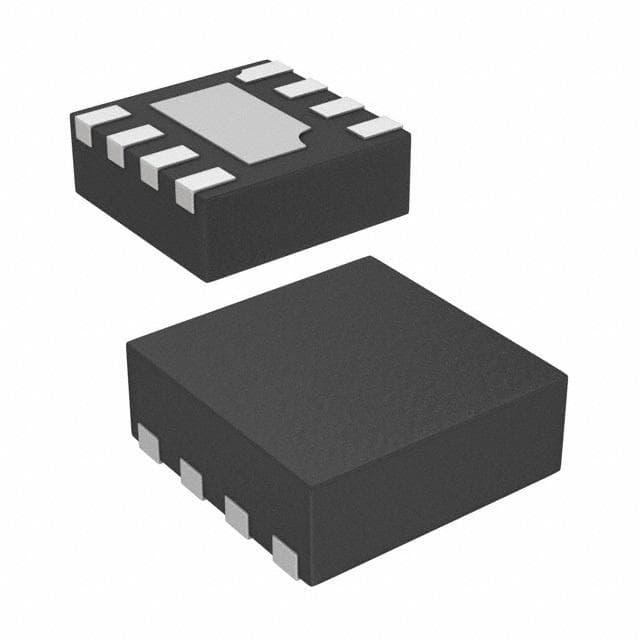

Renesas ISL8002FRZ-T7A
Manufacturer No:
ISL8002FRZ-T7A
Manufacturer:
Package:
WFDFN
Description:
8 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1MHz Tape & Reel (TR) 2A WFDFN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL8002FRZ-T7A information
Renesas ISL8002FRZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8002FRZ-T7A.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Mount
- Surface Mount
- Package / Case
- WFDFN
- Weight
- 50.008559mg
- Packaging
- Tape & Reel (TR)
- Published
- 2010
- JESD-609 Code
- e3
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 8
- JESD-30 Code
- S-PDSO-N8
- Number of Outputs
- 1
- Qualification Status
- Not Qualified
- Input Voltage-Nom
- 3.6V
- Temperature Grade
- AUTOMOTIVE
- Min Supply Voltage
- 2.7V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Operating Supply Current
- 10mA
- Output Configuration
- Positive
- Current - Output
- 2A
- Quiescent Current
- 35μA
- Max Output Voltage
- 5.5V
- Voltage - Output
- 5.5V
- Min Input Voltage
- 2.7V
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 1MHz
- Max Input Voltage
- 5.5V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 600mV
- Switcher Configuration
- BUCK
- Length
- 2mm
- Height Seated (Max)
- 0.8mm
- Width
- 2mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL8002FRZ-T7A.
Datasheets:
ISL8002FRZ-T7A Overview
As a result of the use of the Tape & Reel (TR) package, the performance of this voltage regulator is optimized. As you can see, this harley voltage regulator contains 8 terminations. There are two types of analog ICs on this voltage regulator. The first type is a SWITCHING REGULATOR-type IC. Space-saving WFDFN packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. ICs such as this voltage regulator are capable of generating Adjustable outputs through their output pins. 1MHz is the switching frequency of this DC-DC switching regulator. Featuring a maximum design flexibility of 2A, dc to dc voltage regulator has a maximum output current of 2A. As a result of its peak reflow temperature, this voltage regulator is virtually indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 3.6V is provided. I would like to point out that this voltage regulator belongs to the Switching Regulator or Controllers subcategory. For this switching regulator, it is recommended that the output voltage is at least 600mV volts. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 5.5V. External factors do not affect voltage regulator's consumption of 35μA A of quiescent current. 2.7V V supply voltage ensures reliable performance of adjusting voltage regulator. Stable operation is enabled by the high-limit maximum operating temperature 125°C of harley voltage regulator. A minimum operating temperature of -40°C is required to ensure harley voltage regulator's reliability. The dc to dc voltage regulator's minimum input voltage for this voltage regulator 12v is 2.7V. Designed to sustain a maximum input voltage of 5.5V, this DC-DC switching regulator maintains a maximum output voltage of DC. The DC-DC switching regulator has 8 pins. Powered by a 10mA supply current, this DC-DC switching regulator operates on a DC-DC voltage. With a voltage output of 5.5V, DC DC switching regulator can be used for various applications.
