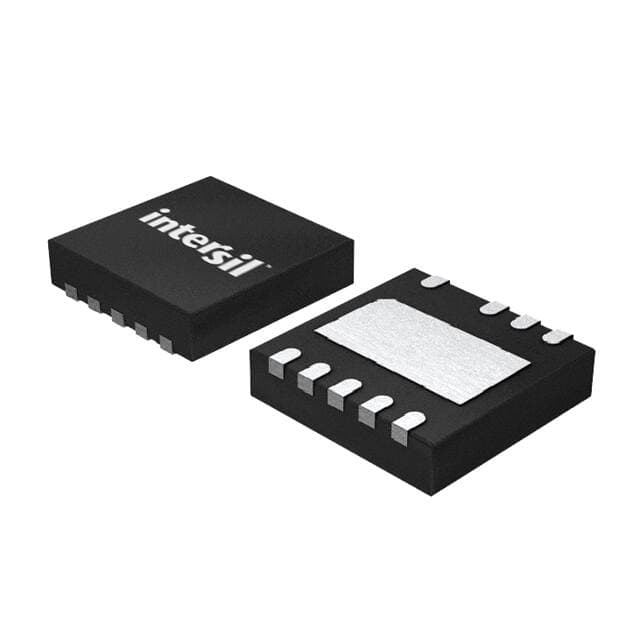

Renesas ISL78420ARTBZ

Manufacturer No:

ISL78420ARTBZ

Manufacturer:

Renesas

Package:

9-WDFN Exposed Pad

Description:

Surface Mount Tube Obsolete Gate Drivers ICs Non-Inverting 2 114V V 9-WDFN Exposed Pad ISL78420A Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL78420ARTBZ information

Renesas ISL78420ARTBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL78420ARTBZ.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
9-WDFN Exposed Pad

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Series
Automotive, AEC-Q100

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Voltage - Supply
8V~14V

Base Part Number
ISL78420A

Input Type
Non-Inverting

Rise / Fall Time (Typ)
10ns 10ns

Channel Type
Synchronous

Number of Drivers
2

Driven Configuration
Half-Bridge

Gate Type
N-Channel MOSFET

Current - Peak Output (Source, Sink)
2A 2A

Logic Voltage - VIL, VIH
1.8V 4V

High Side Voltage - Max (Bootstrap)
114V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL78420ARTBZ.

Datasheets:

renesaselectronicsamericainc-isl78420artbz-datasheets-1905.pdf

ISL78420ARTBZ Overview

There is greater flexibility with the 9-WDFN Exposed Pad package.The packaging method is indicated by Tube.A total of 2 drivers are integrated into its configuration.Surface Mount is mounted in the way.By using 8V~14V supply voltage, it is able to demonstrate its superiority.The gate type on this device is N-Channel MOSFET.This device allows temperatures in the range of -55°C~150°C TJ.A type of Non-Inverting is used for input in this program.Many related parts can be found under its base part number ISL78420A.Mosfet driver is possible to set the high-side voltage - Max (Bootstrap) to 114V.In the Automotive, AEC-Q100 series, this gate driver is included.

ISL78420ARTBZ Features

Embedded in the Tube package
2 drivers
Employing a gate type of N-Channel MOSFET
High-side voltage - Max (Bootstrap) of 114V
Operating with the supply voltage of Automotive, AEC-Q100

ISL78420ARTBZ Applications

There are a lot of Renesas Electronics America Inc.
ISL78420ARTBZ gate drivers applications.

Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
AC-DC Inverters

User Guide
