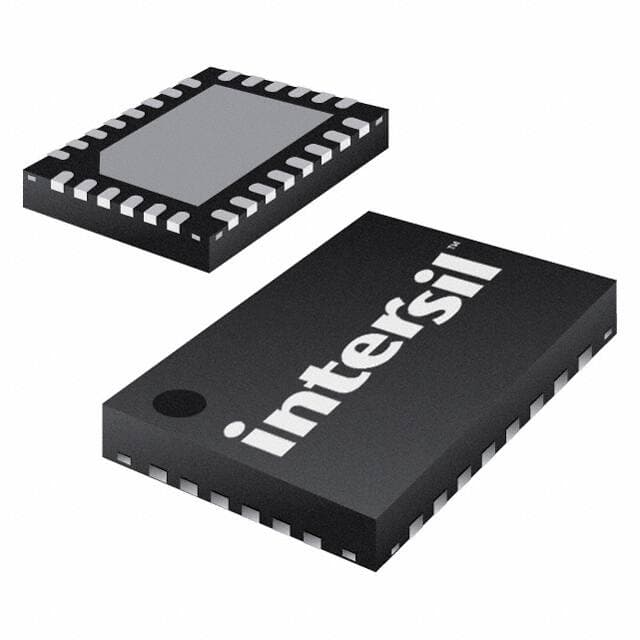

Renesas ISL78419ARZ-T7A

Manufacturer No:

ISL78419ARZ-T7A

Manufacturer:

Renesas

Package:

28-VFQFN Exposed Pad

Description:

28 Terminations 2.5V~5.5V Specialized Power Management ICs 700?A 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL78419ARZ-T7A information

Renesas ISL78419ARZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL78419ARZ-T7A.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
28-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Applications
TFT-LCD Monitors

Voltage - Supply
2.5V~5.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Pin Count
28

JESD-30 Code
R-PQCC-N28

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.5V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Current - Supply
700?A

Height Seated (Max)
0.9mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL78419ARZ-T7A.

Datasheets:

renesaselectronicsamericainc-isl78419arz-datasheets-8593.pdf

ISL78419ARZ-T7A Overview

The way of Tape & Reel (TR) is acceptable for shipping the power management.To facilitate transportation, it is packaged the power management in 28-VFQFN Exposed Pad .Surface Mount is a universal mounting method that is easy to adapt.Among other applications, this power management targets TFT-LCD Monitors .It is recommended that you set the operating temperature of the power management ic to -40°C~105°C in order to prevent malfunctions.For its operation, this power management requires 2.5V~5.5V voltage.There are 28 terminals on the power management.The instruments designs is highly regarded as a POWER SUPPLY SUPPORT CIRCUIT analog IC.The power manager can perform numerous demanding tasks when supplied with 3.3V voltage.The power ic's pinout starts with 28 pins.It is recommended that the power ic receives its supply current at 700?A .It will require at least 2.5V to start up.A network of 1 channels maintains the quality of output by cooperating together.Voltages greater than 5.5V should not be applied to the power supply ic.
