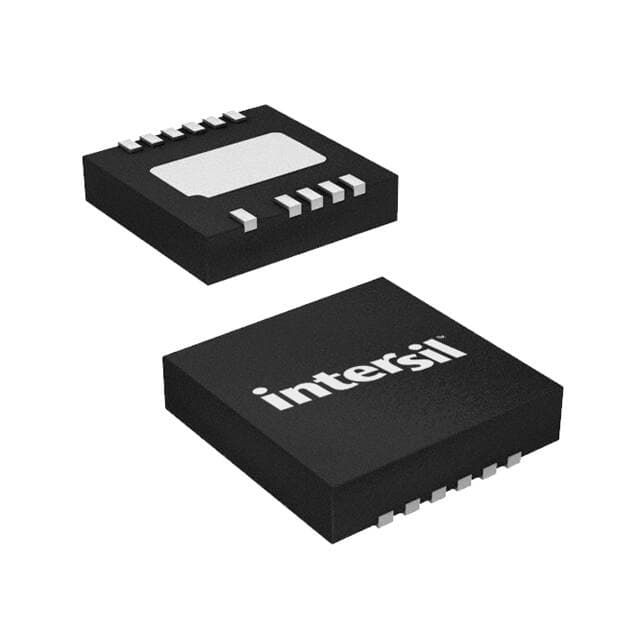

Renesas ISL6720AARZ

Manufacturer No:

ISL6720AARZ

Manufacturer:

Renesas

Package:

11-VFDFN Exposed Pad

Description:

Enable Adjustable (Fixed) 0.5mm ISL6720A PMIC 11 11-VFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6720AARZ information

Renesas ISL6720AARZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6720AARZ.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
11-VFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~105°C

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
11

Terminal Finish
MATTE TIN

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL6720A

Pin Count
11

JESD-30 Code
R-PDSO-N11

Voltage - Input (Max)
100V

Output Type
Adjustable (Fixed)

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
125mA 50mA 25mA

Voltage - Output (Min/Fixed)
0V 5V

Number of Regulators
3

Protection Features
Over Temperature

Current - Quiescent (Iq)
1.7mA

Voltage - Output (Max)
20V

Length
4mm

Height Seated (Max)
1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6720AARZ.

Datasheets:

renesaselectronicsamericainc-isl6720aarz-datasheets-4145.pdf

ISL6720AARZ Overview

An Tube case is included with the delivery. There is a 11-VFDFN Exposed Pad case with the integrated voltage regulator. There are 11 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Adjustable (Fixed) is what the Regulator IC produces. The electronic component implements 3 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~105°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 125mA 50mA 25mAmp current output on this voltage regulator IC. It has a total of 11 pins on IC voltage regulator. It is ISL6720A for this regulator, just for your information. A regulator IC like this uses an analog integrated circuit called SWITCHING REGULATOR.
