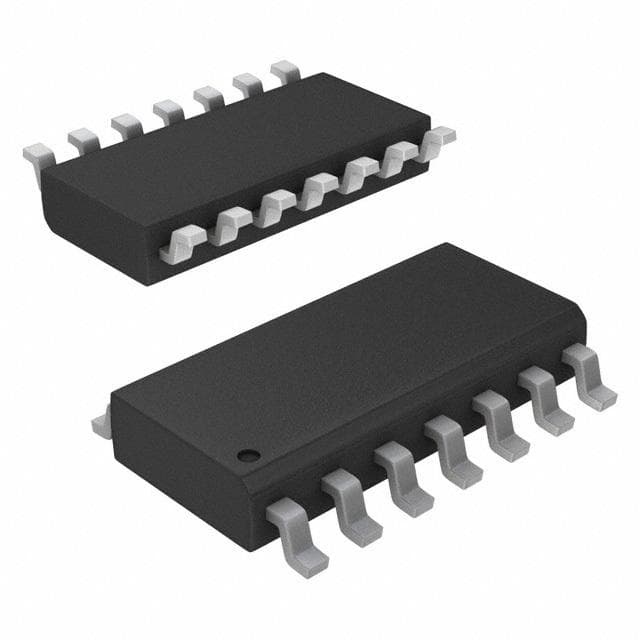

Renesas ISL6614BCBZ-T

Manufacturer No:

ISL6614BCBZ-T

Manufacturer:

Renesas

Package:

SOIC

Description:

Tape & Reel Active EAR99 Gate Drivers ICs 2 SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6614BCBZ-T information

Renesas ISL6614BCBZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6614BCBZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
0°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
14

Number of Outputs
4

Temperature Grade
OTHER

Max Supply Voltage
13.2V

Power Dissipation-Max
1W

Nominal Supply Current
7.1mA

Current - Output
3A

Rise Time
26ns

Fall Time (Typ)
18 ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Number of Drivers
2

High Side Driver
YES

Length
8.65mm

Height Seated (Max)
1.75mm

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6614BCBZ-T.

Datasheets:

intersil-isl6614bcbzt-datasheets-5999.pdf

ISL6614BCBZ-T Overview

The SOIC package provides greater flexibility.Tape & Reel is the packaging method.Gate drivers is configured wGate driversh 2 drivers.Initially, the configuration is composed of 14 terminations.Mounting the device requires Surface Mount.A supply voltage of 12V is required for operation.The interface IC of the device is HALF BRIDGE BASED MOSFET DRIVER.The subcategory of MOSFET Drivers contains a wide variety of useful electronic components.A total of 14 pins are available for component connections.The basis has 4 integrated outputs.Temperatures greater than 85°C are not allowed.Mosfet gate drivers is permissible to operate at a temperature of 0°C.In order for the device to operate, the supply voltage must be 13.2V.Its minimum operating voltage is 7V.3A is the output current.

ISL6614BCBZ-T Features

Embedded in the Tape & Reel package
2 drivers

ISL6614BCBZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6614BCBZ-T gate drivers applications.

A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
