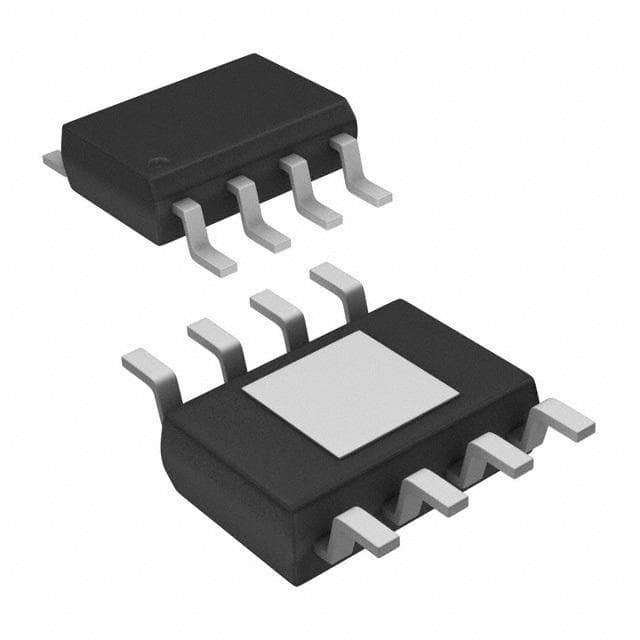

Renesas ISL6612BECBZ-T

Manufacturer No:

ISL6612BECBZ-T

Manufacturer:

Renesas

Package:

SOP

Description:

EAR99 Gate Drivers ICs 2 SOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6612BECBZ-T information

Renesas ISL6612BECBZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6612BECBZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOP

Number of Pins
8

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
0°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Qualification Status
Not Qualified

Max Output Current
3A

Temperature Grade
OTHER

Max Supply Voltage
13.2V

Power Dissipation-Max
2W

Operating Supply Current
10.5mA

Current - Output
3A

Rise Time
26ns

Fall Time (Typ)
18 ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Number of Drivers
2

Output Peak Current Limit-Nom
3A

Supply Voltage1-Nom
12V

High Side Driver
YES

Width
3.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6612BECBZ-T.

Datasheets:

intersil-isl6612becbzt-datasheets-8660.pdf

intersil-isl6612becbzt-datasheets-8661.pdf

intersil-isl6612becbzt-datasheets-9010.pdf

ISL6612BECBZ-T Overview

For greater flexibility, the SOP package is adopted.This configuration includes 2 drivers.Mosfet driver consists of 8 terminations as Mosfet drivers foundation.The device is mounted using Surface Mount.The pins are configured with 8 when designing the chip.The device is specifically designed to operate at 12V volts.Its interface IC is HALF BRIDGE BASED MOSFET DRIVER.3A is the maximum output current.There are various useful electronic components in its subcategory MOSFET Drivers.There are 8 component pins on the board.Mosfet gate drivers is permissible to operate at a temperature of 85°C.Operating temperatures can be as low as 0°C.For operation, 13.2V is the maximum supply voltage.For operation, 7V is the minimum supply voltage.A current of 3A is output by the device.The supply voltage is 10.5mA.
