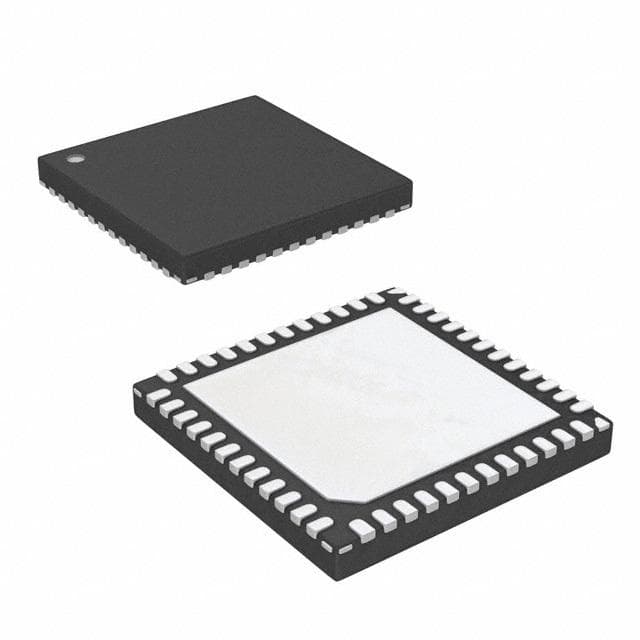

Renesas ISL6595DRZ-T

Manufacturer No:

ISL6595DRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

0.5mm PMIC QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6595DRZ-T information

Renesas ISL6595DRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6595DRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
0°C

Additional Feature
ALSO HAS PWM CONTROL TECHNIQUE

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
48

JESD-30 Code
S-PQCC-N48

Qualification Status
Not Qualified

Input Voltage-Nom
3.3V

Analog IC - Other Type
SWITCHING CONTROLLER

Operating Supply Current
100mA

Input Voltage (Min)
3V

Control Mode
CURRENT-MODE

Output Current-Max
0.016A

Input Voltage (Max)
3.6V

Control Technique
HYSTERETIC CURRENT MODE

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
2000kHz

Length
7mm

Height Seated (Max)
1mm

Width
7mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6595DRZ-T.

Datasheets:

intersil-isl6595drzt-datasheets-1889.pdf

ISL6595DRZ-T Overview

A package of Tape & Reel (TR) contains it. In order to save space, it is included in the QFN package. The device is powered by an analog IC SWITCHING CONTROLLER. In total, it has 48 terminations. 260 is the peak of the reflow temperature. In total, it has 48 pins. Switching Regulator or Controllers includes this device. To power this DC DC switching regulator, a supply current of 100mA is used. According to Surface Mount, it is mounted. It has been designed to operate with a nominal input voltage of 3.3V so that it can fulfill its functions. Additionally, it has the property of ALSO HAS PWM CONTROL TECHNIQUE. A minimum input voltage of 3V is required for the device. Temperatures less than 85°C are indicated as operating temperatures. Over 0°C is the recommended operating temperature. Device switching frequency is 2000kHz at maximum.

ISL6595DRZ-T Features

QFN package
Switching Regulator or Controllers subcategory
Input voltage of 3.3V
Minimum temperature of 0°C

ISL6595DRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6595DRZ-T Power Supply Control ICs applications.

Large conference system engineering
Screen lift
Monogram lift
Projector electric hanger lift
Multimedia classroom
Multi-purposed meeting room
Command and control center
Smart home
User-available push-button control panel
Computer monitor
