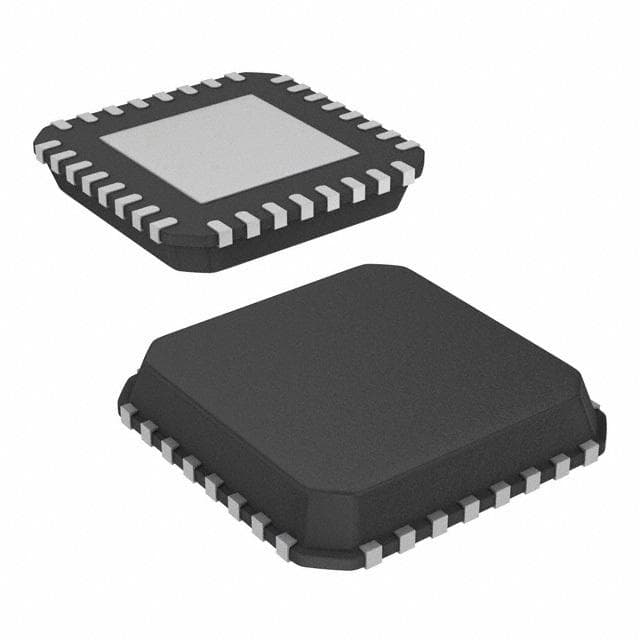

Renesas ISL6568CRZ-TR5184

Manufacturer No:

ISL6568CRZ-TR5184

Manufacturer:

Renesas

Package:

QFN

Description:

12V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6568CRZ-TR5184 information

Renesas ISL6568CRZ-TR5184 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6568CRZ-TR5184.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Packaging
Tape & Reel

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
CAN ALSO FUNCTION IN CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
1

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
60A

Voltage - Output
12V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1.5MHz

Control Technique
PULSE WIDTH MODULATION

Rise Time
26ns

Fall Time (Typ)
18 ns

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66.6 %

Length
5mm

Width
5mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6568CRZ-TR5184.

Datasheets:

intersil-isl6568crztr5184-datasheets-5275.pdf

ISL6568CRZ-TR5184 Overview

Currently, it supports a total of 1 outputs. The rectifier regulator is packaged in QFN in order to facilitate transportation. Currently available in Tape & Reel packages for shipping. There is a general voltage output of 12Von this voltage controller. Electronic components have 32 terminals. As a SWITCHING CONTROLLER regulator, the electronic part has received high ratings. This alternator regulator has a pinout starting from 32 pins. A Surface Mount is provided for mounting it on PCBs and other boards. The power supply regulator has a pin count of 32. The AC voltage regulator is one example of how other Switching Regulator or Controllers play a critical role in the industry. A temperature lower than 0°Cis not suitable for the shunt regulator. There is no need to exceed 70°C in terms of temperature. In order to operate normally, a supply voltage of 5V is required. As an additional feature of this voltage regulator, please refer to the following: CAN ALSO FUNCTION IN CURRENT MODE. A switching frequency of 1.5MHzis available with this AC voltage regulator.

ISL6568CRZ-TR5184 Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1.5MHz

ISL6568CRZ-TR5184 Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6568CRZ-TR5184 Specialized Voltage Regulators applications.

Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
