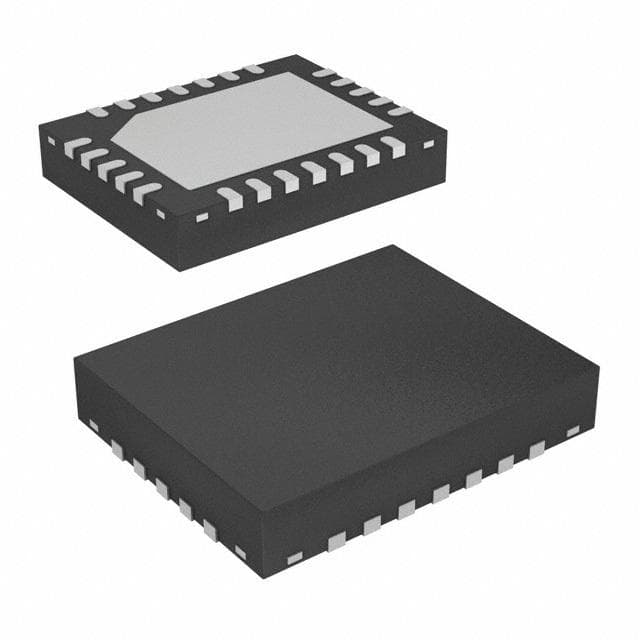

Renesas ISL6563IRZ-T

Manufacturer No:

ISL6563IRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

1.85V 260 Cel QUAD Specialized Voltage Regulator 24 Pins 24 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6563IRZ-T information

Renesas ISL6563IRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6563IRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
24

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Number of Outputs
1

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Current - Output
60A

Voltage - Output
1.85V

Control Mode
CURRENT-MODE

Frequency - Switching
255kHz

Control Technique
PULSE WIDTH MODULATION

Rise Time
8ns

Fall Time (Typ)
8 ns

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66 %

Length
4mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6563IRZ-T.

Datasheets:

intersil-isl6563irzt-datasheets-3281.pdf

ISL6563IRZ-T Overview

The system supports a total of 1 outputs. In order to facilitate transportation, alternator regulator is packaged in QFN. The output voltage of this voltage controller is 1.85V. The voltage regulator has 24terminals. It has received a great deal of support as a SWITCHING CONTROLLER regulator. The pinout of the rectifier regulator begins with the pins it has at 24. Mounting on PCBs or other boards is easy with the Surface Mount. A power supply regulator with 24pins is present. It is important to note that other Switching Regulator or Controllers in the industry, such as the voltage controller, also play a significant part. The product cannot be used at temperatures below -40°C. A temperature above 70°C is not recommended. It is necessary to have a voltage of 5V for normal operation. There is a 255kHzswitching frequency on this voltage regulator.

ISL6563IRZ-T Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 255kHz

ISL6563IRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6563IRZ-T Specialized Voltage Regulators applications.

LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
