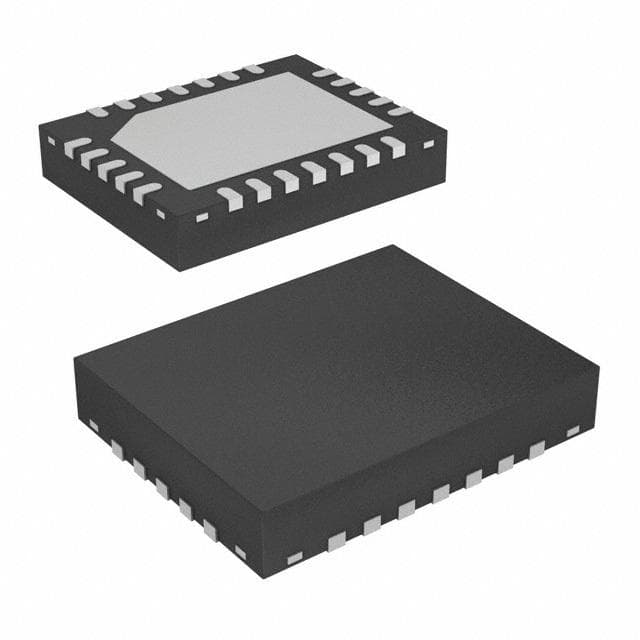

Renesas ISL6563CRZ-T

Manufacturer No:

ISL6563CRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

1.85V 260 Cel QUAD Specialized Voltage Regulator 24 Pins 24 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6563CRZ-T information

Renesas ISL6563CRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6563CRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
24

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Number of Outputs
1

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
60A

Voltage - Output
1.85V

Control Mode
CURRENT-MODE

Frequency - Switching
255kHz

Control Technique
PULSE WIDTH MODULATION

Rise Time
8ns

Fall Time (Typ)
8 ns

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66 %

Length
4mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6563CRZ-T.

Datasheets:

intersil-isl6563crzt-datasheets-3049.pdf

ISL6563CRZ-T Overview

As a whole, it supports 1 outputs. For ease of transportation, alternator regulator is packaged in QFN. There is a general voltage output of 1.85V from this power supply regulator. The voltage regulator contains 24terminals. The electronic part is widely regarded as a regulator of type SWITCHING CONTROLLER. Assuming that the rectifier regulator has 24 pins, the pinout begins from there. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 24 pins are available. There are other Switching Regulator or Controllersin the industry, such as the voltage controller, which play an important role. It cannot be operated at a temperature below 0°C. The temperature should not exceed 70°C. For normal operation, a voltage of 5V is required. Voltage regulators with 255kHzswitching frequencies are available.

ISL6563CRZ-T Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 255kHz

ISL6563CRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6563CRZ-T Specialized Voltage Regulators applications.

Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
