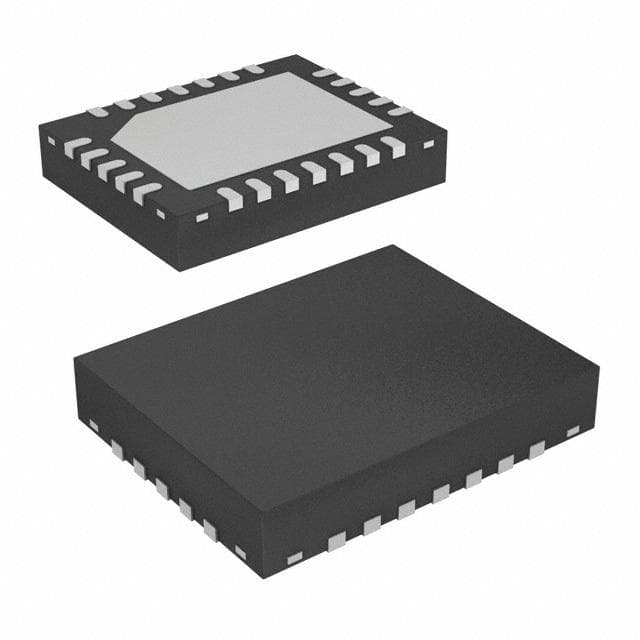

Renesas ISL6563CR-T

Manufacturer No:

ISL6563CR-T

Manufacturer:

Renesas

Package:

QFN

Description:

1.85V 240 Cel QUAD Specialized Voltage Regulator 24 Pins 24 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6563CR-T information

Renesas ISL6563CR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6563CR-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Packaging
Tape & Reel (TR)

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

JESD-30 Code
S-PQCC-N24

Number of Outputs
1

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
1.85V

Input Voltage (Min)
4.75V

Control Mode
CURRENT-MODE

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
255kHz

Length
4mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6563CR-T.

Datasheets:

intersil-isl6563crt-datasheets-2774.pdf

ISL6563CR-T Overview

A total of 1outputs are supported by this voltage regulator. The rectifier regulator is packaged in QFN to facilitate transportation. We are ready to ship in Tape & Reel (TR) packages. An output voltage of 1.85V is provided by this power supply regulator. There are 24terminals on the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received high praise. Pinouts for the rectifier regulator begin at 24. There is a Surface Mount on the board for mounting to a PCB or other board. The voltage controller plays an important role in the industry, as do other Switching Regulator or Controllers. Temperatures below 0°Care not suitable for the shunt regulator. A temperature higher than 70°Cshould not be used.

ISL6563CR-T Features

SWITCHING CONTROLLER analog IC

ISL6563CR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6563CR-T Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
