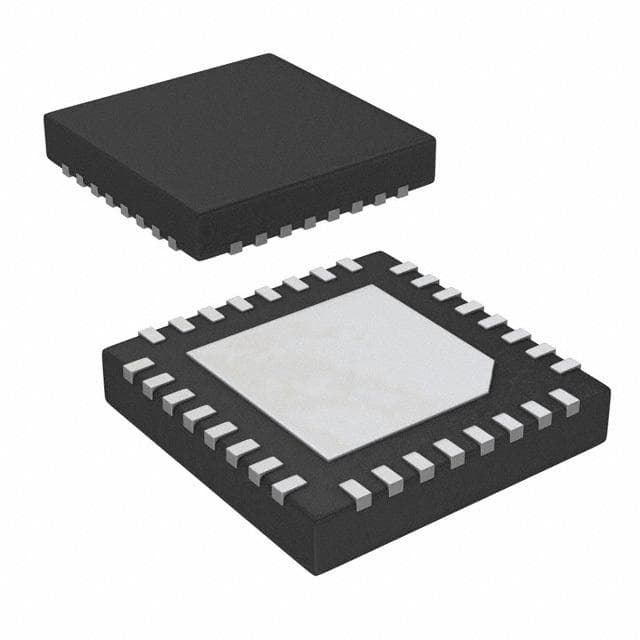

Renesas ISL6556ACRZ-T

Manufacturer No:

ISL6556ACRZ-T

Manufacturer:

Renesas

Package:

QFN EP

Description:

1.6V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556ACRZ-T information

Renesas ISL6556ACRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556ACRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN EP

Number of Pins
32

Packaging
Tape & Reel

Published
2003

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
IT CAN ALSO OPERATE WITH CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
4

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
120A

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1.5MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66.7 %

Length
5mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6556ACRZ-T.

Datasheets:

intersil-isl6556acrzt-datasheets-6644.pdf

ISL6556ACRZ-T Overview

The voltage regulator supports a total of 4 outputs. The rectifier regulator is conveniently packaged in QFN EP. Currently, the power regulator is available for shipping in Tape & Reel packages. 1.6Vis the general voltage output of this voltage controller. This electronic component contains terminals with a value of 32. The part has been well received as a SWITCHING CONTROLLER voltage regulator. Unless otherwise stated, the pinout of the alternator regulator begins with 32pins. This component has a Surface Mount mount for mounting to PCBs or other boards. 32pins are found on the power supply regulator. The AC voltage regulator and other Switching Regulator or Controllers are crucial to the industry. A temperature below 0°C is not suitable for the shunt regulator. An increase in temperature over 70°C is not recommended. The normal operation of the system requires 5V operating voltage. Here are the extra aspects of this voltage regulator: IT CAN ALSO OPERATE WITH CURRENT MODE. A 1.5MHz switching frequency is available for this AC voltage regulator.

ISL6556ACRZ-T Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1.5MHz

ISL6556ACRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556ACRZ-T Specialized Voltage Regulators applications.

PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
Mobile Radios
