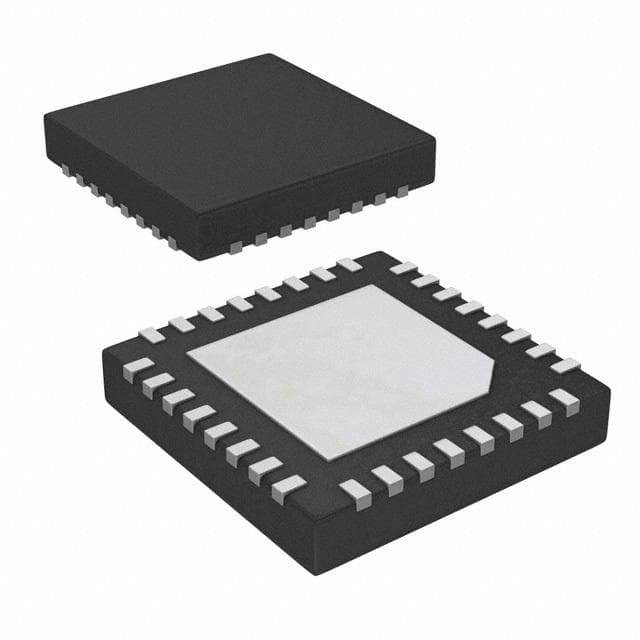

Renesas ISL6556ACR

Manufacturer No:

ISL6556ACR

Manufacturer:

Renesas

Package:

QFN

Description:

1.6V 240 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556ACR information

Renesas ISL6556ACR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556ACR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Published
2003

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
IT CAN ALSO OPERATE WITH CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

JESD-30 Code
S-PQCC-N32

Number of Outputs
4

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
1500kHz

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6556ACR.

Datasheets:

intersil-isl6556acr-datasheets-6315.pdf

ISL6556ACR Overview

As a whole, it supports 4 outputs. For ease of transportation, alternator regulator is packaged in QFN. There is a general voltage output of 1.6V from this power supply regulator. The voltage regulator contains 32terminals. The electronic part is widely regarded as a regulator of type SWITCHING CONTROLLER. Assuming that the rectifier regulator has 32 pins, the pinout begins from there. In order to mount it on PCBs or other boards, it has a Surface Mount. There are other Switching Regulator or Controllersin the industry, such as the voltage controller, which play an important role. It cannot be operated at a temperature below 0°C. The temperature should not exceed 70°C. Refer to the following extra aspects of this variable voltage regulator: IT CAN ALSO OPERATE WITH CURRENT MODE.

ISL6556ACR Features

SWITCHING CONTROLLER analog IC

ISL6556ACR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556ACR Specialized Voltage Regulators applications.

Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
