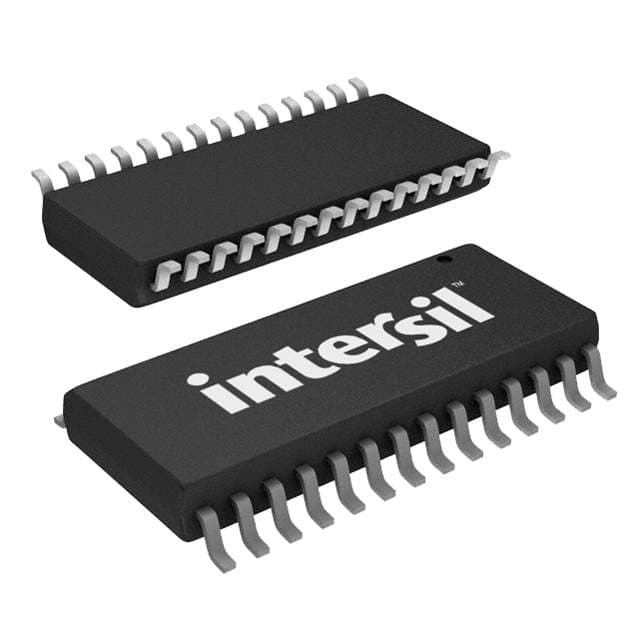

Renesas ISL6556ACB-T

Manufacturer No:

ISL6556ACB-T

Manufacturer:

Renesas

Package:

SOIC

Description:

1.6V 240 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556ACB-T information

Renesas ISL6556ACB-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556ACB-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
IT CAN ALSO OPERATE WITH CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

JESD-30 Code
R-PDSO-G28

Number of Outputs
4

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
1500kHz

Length
17.9mm

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6556ACB-T.

Datasheets:

intersil-isl6556acbt-datasheets-5978.pdf

ISL6556ACB-T Overview

There are 4 outputs supported by the voltage regulator. Transport is made easy with the package of SOIC. Currently, Tape & Reel (TR) packages are available for shipping. Volatge output for this voltage controller is 1.6V. It contains terminals with the number 28. The part has received praise for being a SWITCHING CONTROLLER voltage regulator. Initially, the pinout of the alternator regulator begins with 28 pins. Surface Mount is there for mounting on a PCB or another board. The AC voltage regulator and other Switching Regulator or Controllers play an important role in the industry. It cannot be operated at temperatures below 0°C. In general, temperatures higher than 70°Care not recommended. In addition to this voltage regulator, the following extra features are available: IT CAN ALSO OPERATE WITH CURRENT MODE.

ISL6556ACB-T Features

SWITCHING CONTROLLER analog IC

ISL6556ACB-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556ACB-T Specialized Voltage Regulators applications.

DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
