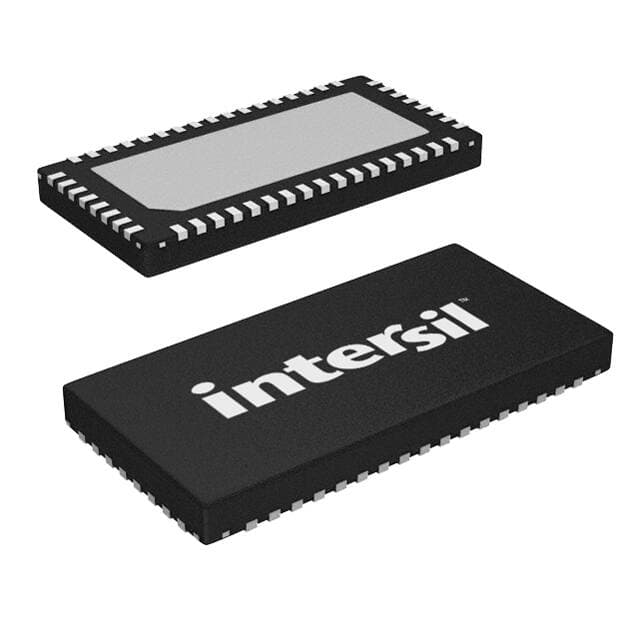

Renesas ISL65426HRZ

Manufacturer No:

ISL65426HRZ

Manufacturer:

Renesas

Package:

50-VFQFN Exposed Pad

Description:

50 Terminals 3V ISL65426 DC DC Voltage Regulator DUAL SWITCHING CONTROLLER 2 Outputs 1MHz Tube 6A 50-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL65426HRZ information

Renesas ISL65426HRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL65426HRZ.

Type
Parameter

Factory Lead Time
11 Weeks

Mounting Type
Surface Mount

Package / Case
50-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-10°C~125°C TJ

Packaging
Tube

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
50

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL65426

JESD-30 Code
R-PQCC-N50

Function
Step-Down

Number of Outputs
2

Voltage - Input (Max)
5.5V

Output Type
Adjustable

Voltage - Input (Min)
3V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Current - Output
6A

Voltage - Output (Min/Fixed)
1V

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
PHASE-SHIFT

Voltage - Output (Max)
4V

Length
10mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL65426HRZ.

Datasheets:

renesaselectronicsamericainc-isl65426irzat-datasheets-4590.pdf

ISL65426HRZ Overview
