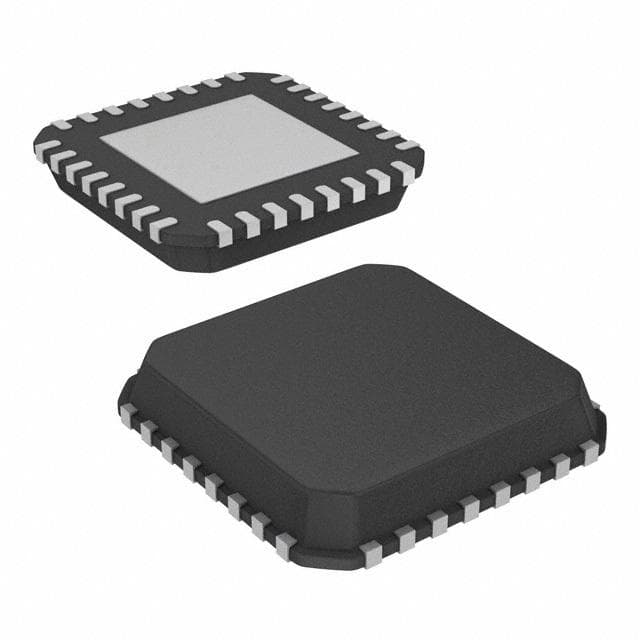

Renesas ISL6534CR-T

Manufacturer No:

ISL6534CR-T

Manufacturer:

Renesas

Package:

QFN

Description:

0.5mm PMIC 32 Pin 1MHz QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6534CR-T information

Renesas ISL6534CR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6534CR-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Packaging
Tape & Reel (TR)

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Frequency
1MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
3

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Quiescent Current
4mA

Input Voltage (Min)
4.75V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6534CR-T.

Datasheets:

intersil-isl6534crt-datasheets-9129.pdf

ISL6534CR-T Overview

In order to make voltage regulators' voltage regulators' transportation easier, it is packaged in QFN.Shipped in a Tape & Reel (TR) package.As a whole, voltage regulator supports 3 outputs.On the switching regulator, you will find 32 terminals.Its pinout starts at 32 pins.In order to relow solder, it is necessary to allow the temperature to peak 240.Pins are arranged in a 32 pattern in this voltage regulator.There is a quiescent current of 4mA displayed by the regulator controller.The voltage regulator DC to DC and other Switching Regulator or Controllers are important in the industry.Surface Mount-axis for mounting to PCBs and other boards.It can't be used at temperatures lower than 0°C.The use of this harley voltage regulator is not recommended at temperatures above 70°C.

ISL6534CR-T Features

3 outputs
Peak Reflow Temperature: 240
Quiescent Current: 4mA

ISL6534CR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6534CR-T Linear Regulator Controllers applications.

Low parts count 5.0V to 3.3V computer supply
Low noise SMPS post regulator
Low-dropout SMPS post regulator
High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
